Repair Procedures: Removal

  1. Remove the air duct.

    (Refer to "AIR CLEANER ")

  2. Remove the battery and the battery tray.

    (Refer to "BATTERY ")

  3. Remove the under cover.

    (Refer to "ENGINE ROOM UNDER COVER ")

  4. Drain the coolant.

    (Refer to "COOLANT ")

  5. Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

    Tightening torque:

    38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

    Fig 1: Identifying Drain Plug
    G09765574Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Replace the gasket before reinstalling the drain plug.
  6. Remove the wiring bracket installation bolt (A).
    Fig 2: Identifying Wiring Bracket Installation Bolt
    G09765575Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the ATF Injection hole (eyebolt) (A).
    Fig 3: Identifying ATF Injection Hole
    G09765576Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Replace the O-Ring (A) before reinstalling the eyebolt.
    Fig 4: Identifying Eyebolt O-Ring
    G09765577Courtesy of KIA MOTORS AMERICA, INC.
  8. Disconnect the coolant hose (B) after removing the coolant hose clamp (A).
    Fig 5: Disconnecting Coolant Hose
    G09765578Courtesy of KIA MOTORS AMERICA, INC.
  9. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 6: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
    G09765579Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: When hose & pipe assembly
    Align marking of pipe (B), marking of hose (A), and matching color each other.
    Fig 7: Identifying Alignment Mark Of Pipe And Hose
    G09765580Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the valve body cover (A).

    Tightening torque:

    (A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

    Fig 8: Identifying Valve Body Cover
    G09765581Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Replace the gasket (A) before reinstalling the valve body cover.
    Fig 9: Identifying Valve Body Cover Gasket
    G09765582Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the bolts (C) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

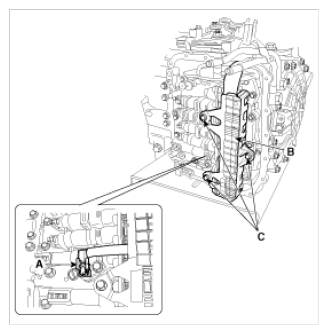

    Fig 10: Identifying Oil Temperature Sensor Connector, Solenoid Valve Connector And Bolts
    G09765583Courtesy of KIA MOTORS AMERICA, INC.
  12. Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

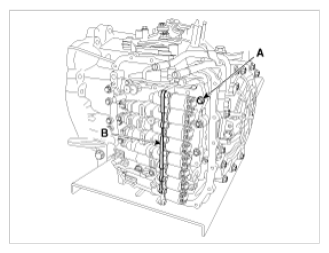

    Fig 11: Identifying Solenoid Valve Support Bracket And Mounting Bolts
    G09765584Courtesy of KIA MOTORS AMERICA, INC.
  13. Remove the torque converter control solenoid valve (A).

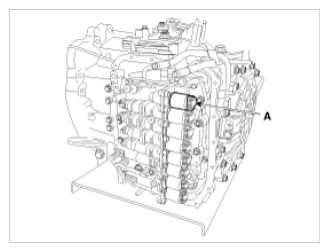

    Fig 12: Identifying Torque Converter Control Solenoid Valve
    G09765585Courtesy of KIA MOTORS AMERICA, INC.
