Smart Key Control Module Connector End View (M32-B)

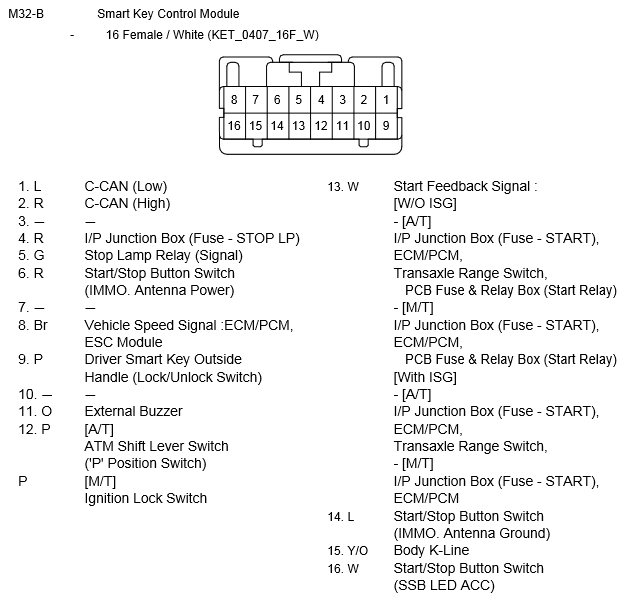

Fig 1: Smart Key Control Module Connector End View (M32-B)

G10812764

Courtesy of KIA MOTORS AMERICA, INC.
