Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the shift lever knob. (Refer to the "CONSOLE ")
  2. Remove the console upper cover (A).
    Fig 1: Identifying Console Upper Cover
    G08309032Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector from the console upper cover.
  4. Remove the multimedia jack (B) from the console under cover after releasing the fixed hooks (A).

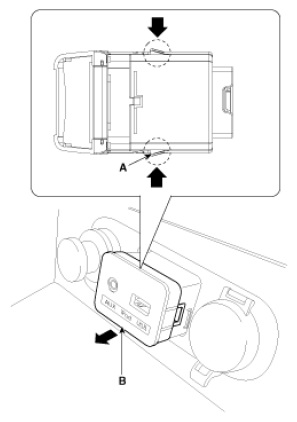

    Fig 2: Removing Multimedia Jack From Console Under Cover
    G08309033Courtesy of KIA MOTORS AMERICA, INC.
