Signal Waveform & Data

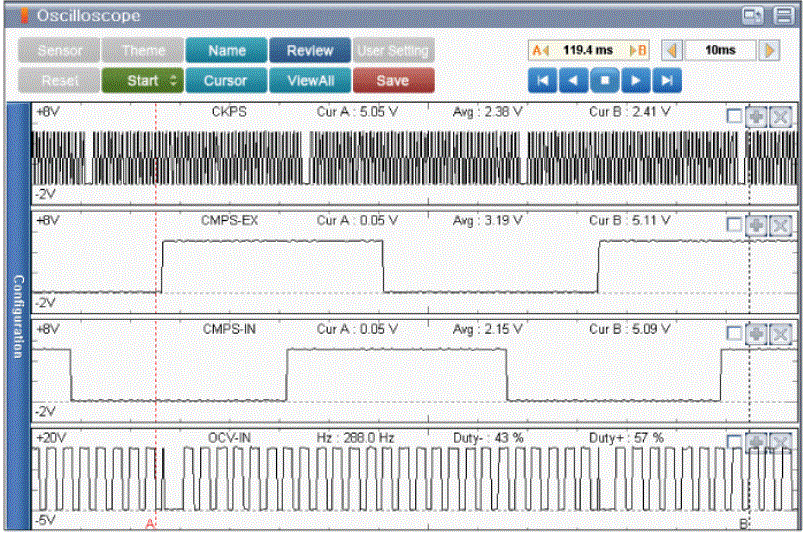

Fig 1: Waveform Of CKPS & CMPS (EX, IN), OCV-IN Idling

Courtesy of KIA MOTORS AMERICA, INC.

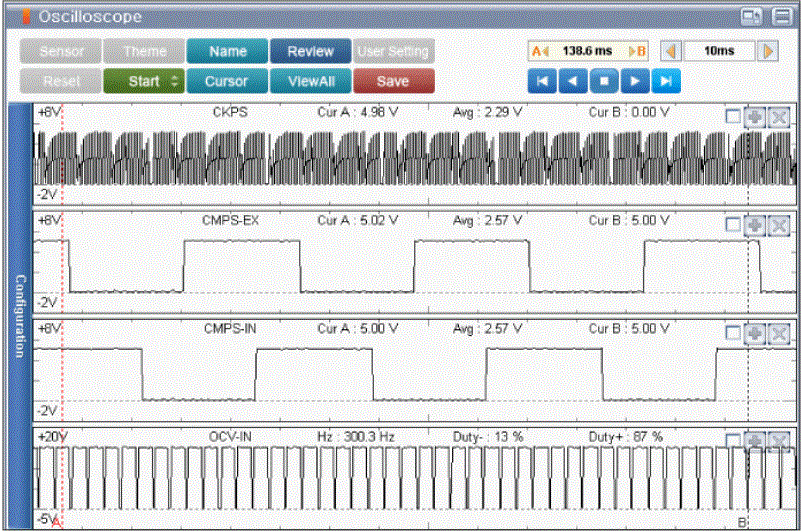

Fig 2: Waveform Of CKPS & CMPS (EX, IN), OCV-IN Accelerating

Courtesy of KIA MOTORS AMERICA, INC.

Oscilloscope Review - Normal Waveforms of CKPS & CMPS (EX, IN), OCV-IN

Idling (OCV (-) Duty 43%, (+) Duty 57%)

Accelerating (OCV (-) Duty 13%, (+) Duty 87%)
