Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Loosen the mounting screw and then remove the crash pad lower cover (A).

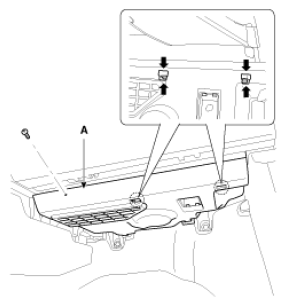

    Fig 1: Removing Crash Pad Lower Cover
    G08309675Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the evaporator temperature sensor (A), by pulling it after rotating 90° in a counterclockwise direction.
    Fig 2: Removing Evaporator Temperature Sensor
    G08309676Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
