Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad.

    (Refer to "CRASH PAD ")

  3. Loosen the screws and then remove the cluster ionizer (A).

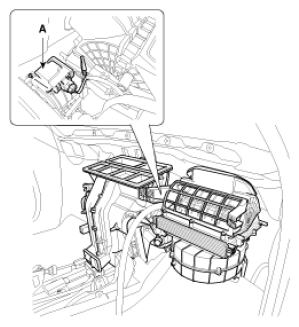

    Fig 1: Identifying Cluster Ionizer And Screws
    G08309683Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
