Circuit Diagram

WARNING: This page is about a different car, the 2015 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

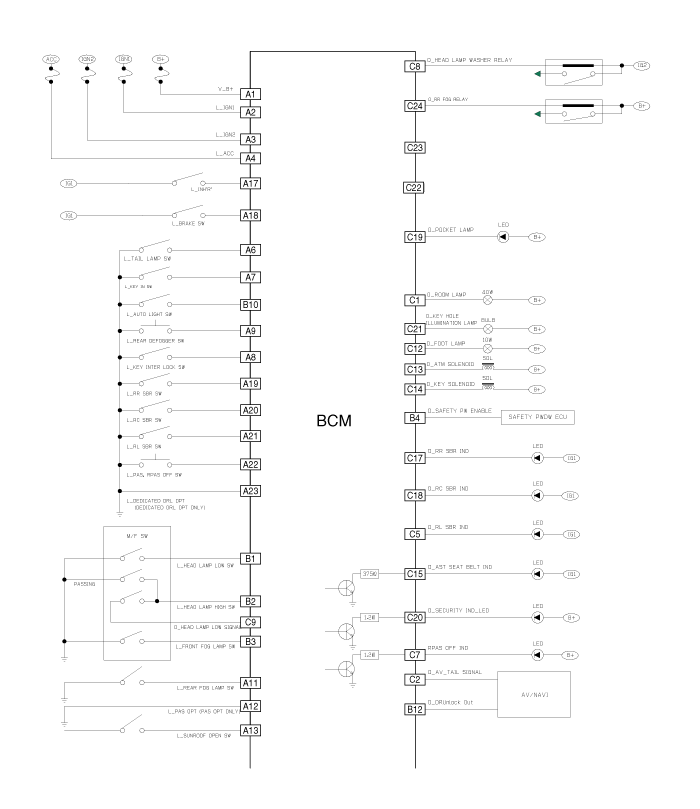

Fig 1: BCM Circuit Diagram (1 Of 2)
G00549987Courtesy of KIA MOTORS AMERICA, INC.

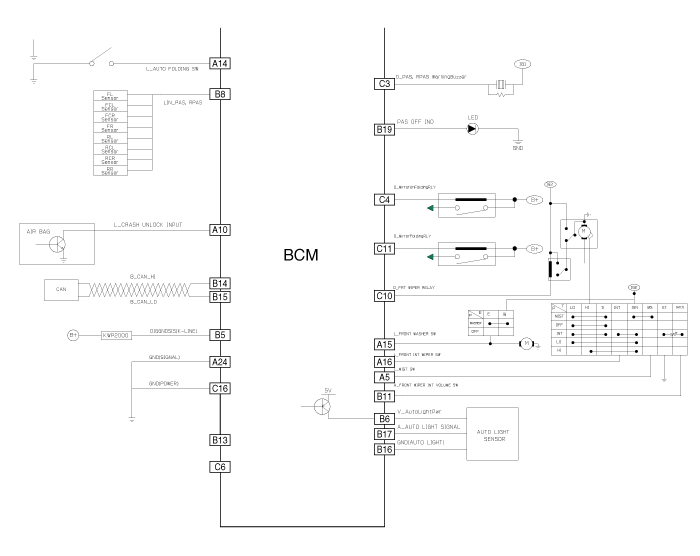

Fig 2: BCM Circuit Diagram (2 Of 2)
G00549988Courtesy of KIA MOTORS AMERICA, INC.
