Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data"  about related DTC with GDS.

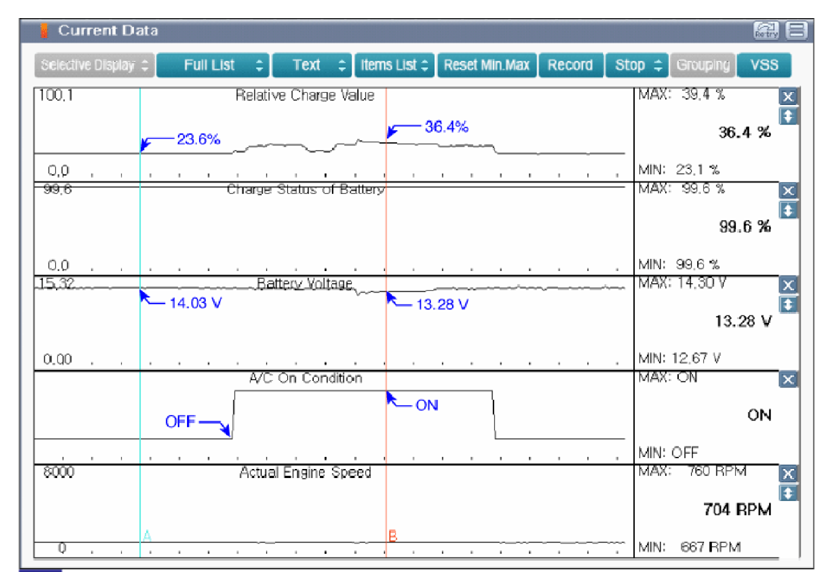

    Fig 1: Scantool Display - Relative Charge Value Waveform
    G09748307Courtesy of KIA MOTORS AMERICA, INC.

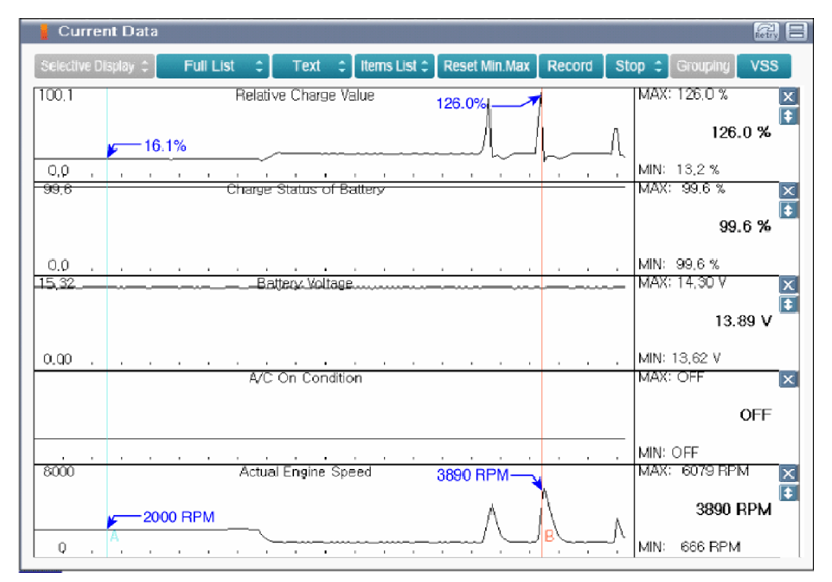

    Fig 2: Scantool Display - Actual Engine Speed Waveform
    G09748308Courtesy of KIA MOTORS AMERICA, INC.
    1. Engine Idle after Warm Up
    2. Aircon "On"
    1. Approx. 2000RPM
    2. At Acceleration
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
