Signal Waveform & Data

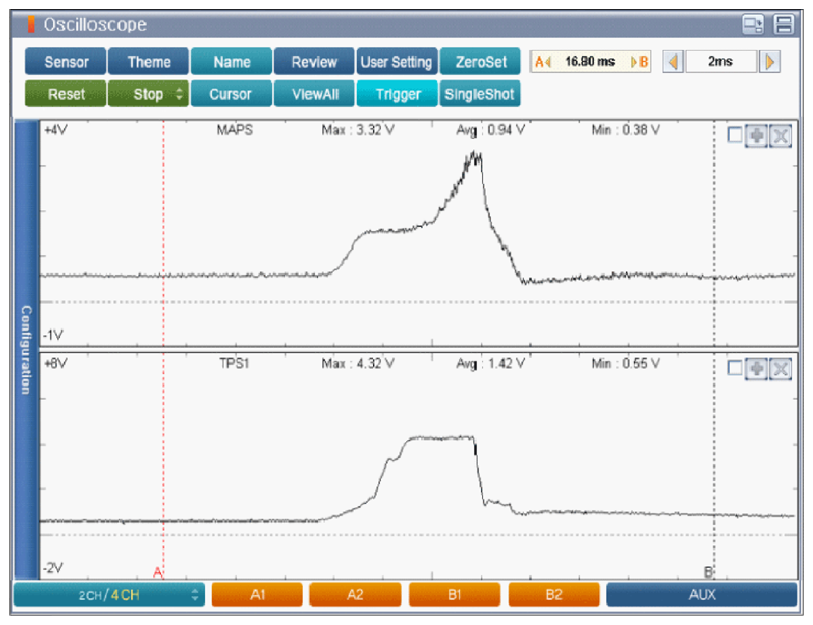

Fig 1: Scantool Display - Normal Waveforms Of MAPS & TPS1 At Engine Wide Open Throttle

G09747782

Courtesy of KIA MOTORS AMERICA, INC.
