Components and Components Location: Components

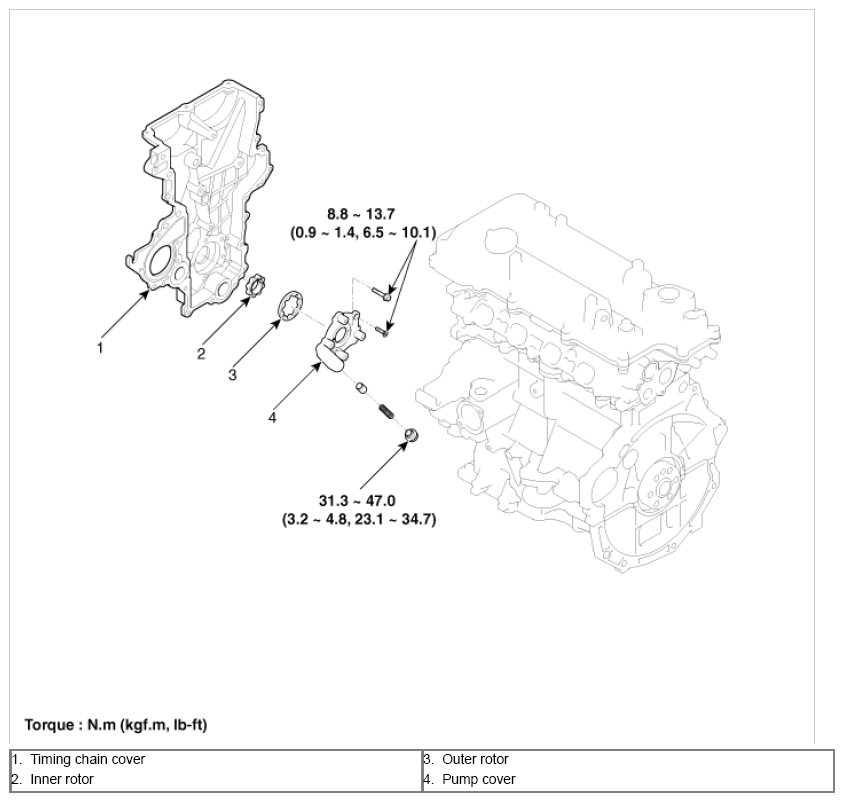

Fig 1: Exploded View Of Oil Pump

G09746742

Courtesy of KIA MOTORS AMERICA, INC.
