Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data  " mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

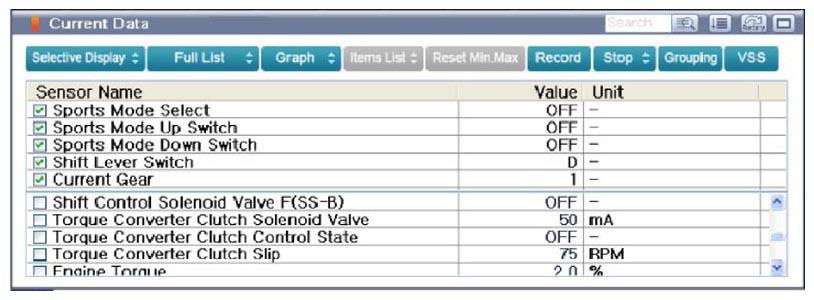

    Fig 1: Current Data For "D" Range
    G09749865Courtesy of KIA MOTORS AMERICA, INC.

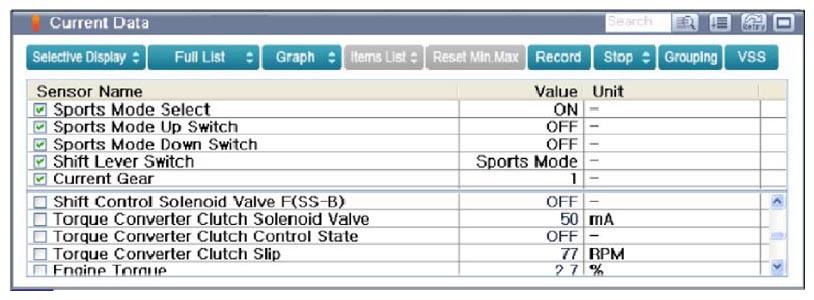

    Fig 2: Current Data For "Sports Mode ON"
    G09749866Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Current Data For "Sports Mode Up Switch ON"
    G09749867Courtesy of KIA MOTORS AMERICA, INC.

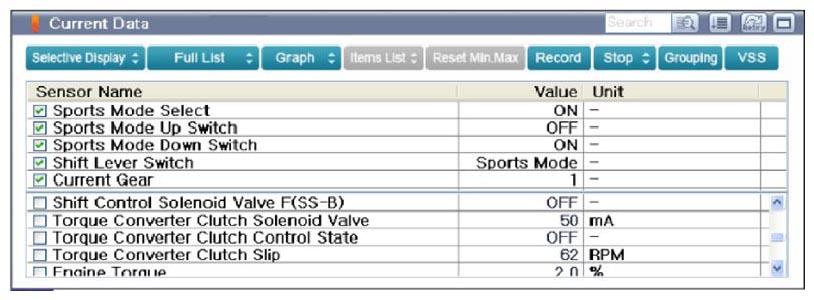

    Fig 4: Current Data For "Sports Mode Down Switch ON"
    G09749868Courtesy of KIA MOTORS AMERICA, INC.
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared.

      Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
