Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & engine "OFF".
Select "Current Data" mode and monitor "Shift Lever switch" parameter.
Change a shift lever from P-range to D-range.

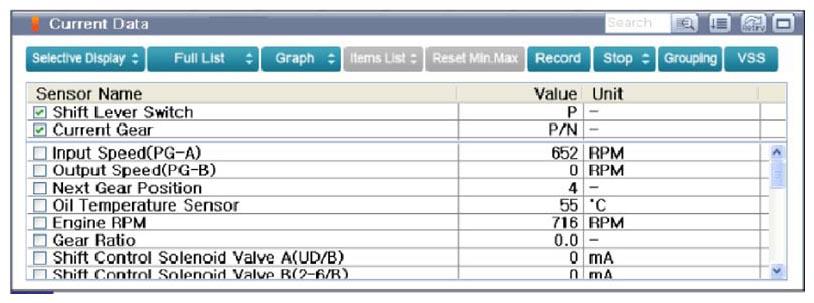

Fig 1: Current Data For P Range
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Current Data For R Range
Courtesy of KIA MOTORS AMERICA, INC.

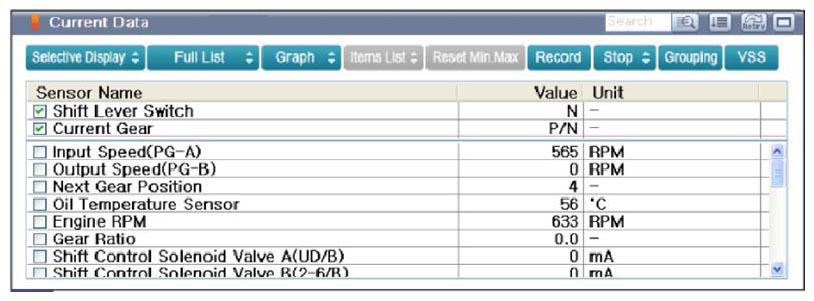

Fig 3: Current Data For N Range
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Current Data For D Range
Courtesy of KIA MOTORS AMERICA, INC.
Is the Inhibitor switch value changed in specification?
YES
- Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION ".
