[Measuring Resistance]

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the cruise control switch connector from the control switch.

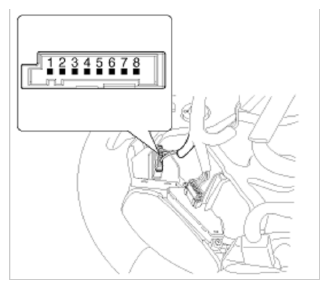

    Fig 1: Identifying Cruise Control Switch Connector From Control Switch
    G09746901Courtesy of KIA MOTORS AMERICA, INC.
  2. Measure the resistance between the terminals below when the function switch is ON.
    Function switch Connector terminal Resistance (±5%)
    CANCEL 2-7 180 Ω
    SET- 2-7 330 Ω
    RES+ 2-7 550 Ω
    CRUISE 2-7 880 Ω
    Flex steer 2-7 5.54 kΩ
  3. If the measured value is not within the specification, replace the switch.
