Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Disconnect the Electric Oil Pump (EOP) connector (A).

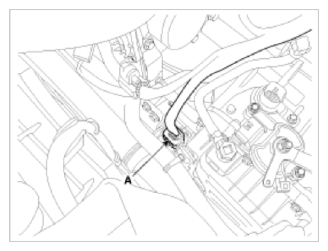

Fig 1: Electric Oil Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover after lifting the vehicle with lift. (Refer to "ENGINE ROOM UNDER COVER ")
Remove the Electric Oil Pump (B) after removing the bolts (A-4ea).
Tightening torque:

19.6 ~ 25.5 N.m (2.0 ~ 2.6 kgf.m, 14.4 ~ 18.8 lb-ft)

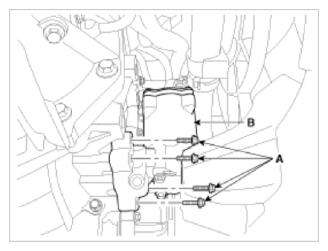

Fig 2: Electric Oil Pump Bolts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Electric Oil Pump
Courtesy of KIA MOTORS AMERICA, INC.
