Home >> Kia >> 2014 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 1.8L >> Battery >> Troubleshooting

Charging System - 1.8L: Battery: Troubleshooting

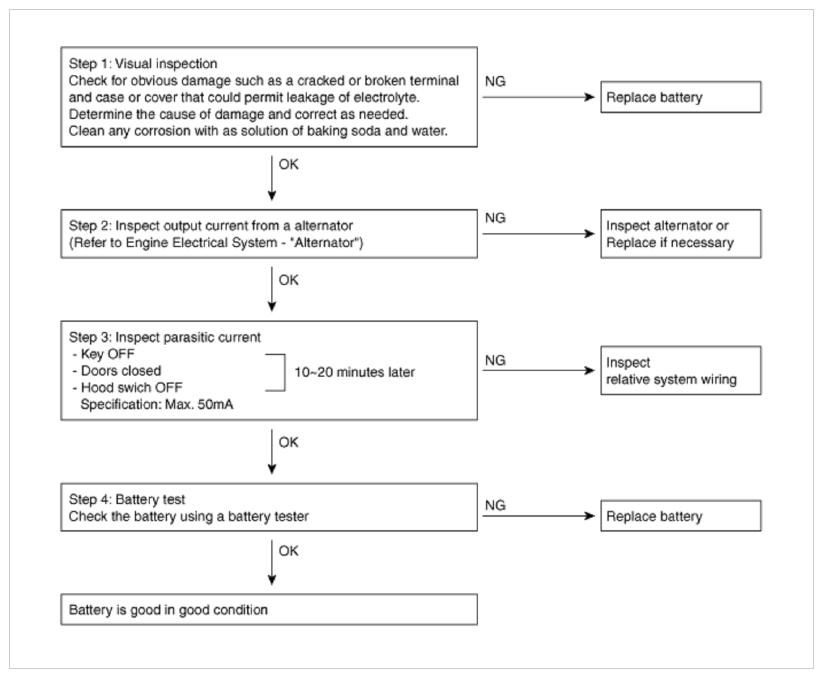

Fig 1: Troubleshooting Chart

G09745542

Courtesy of KIA MOTORS AMERICA, INC.
