Repair Procedures: Removal

  1. Disconnect the battery terminals (A).

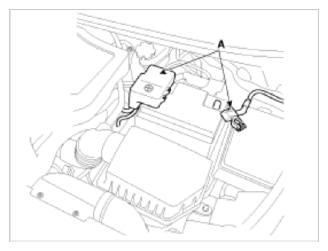

    Fig 1: Identifying Battery Terminals
    G09745537Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Remove the battery insulation pad.
  4. Remove the battery (A) after removing the mounting bracket.

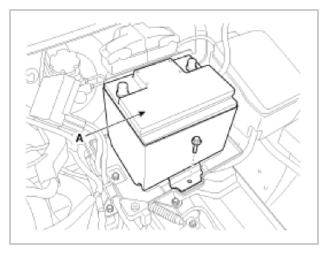

    Fig 2: Identifying Mounting Bracket Battery
    G09745538Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the ECM.

    (Refer to "ENGINE CONTROL MODULE (ECM) ")

  6. Remove the battery tray (A) after removing the bolts.

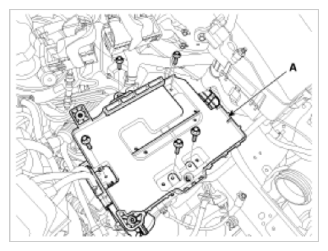

    Fig 3: Identifying Battery Tray & Bolts
    G09745539Courtesy of KIA MOTORS AMERICA, INC.
