Circuit Diagram: (A/T)

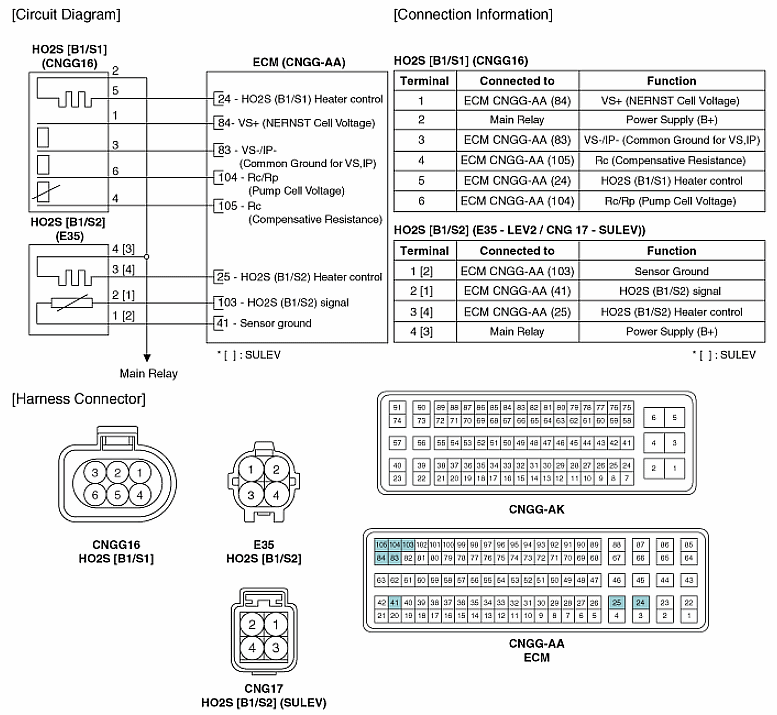

Fig 1: Heated Oxygen Sensor - Circuit Diagram (A/T)

G09742992

Courtesy of KIA MOTORS AMERICA, INC.
