[Driver Auto Down]

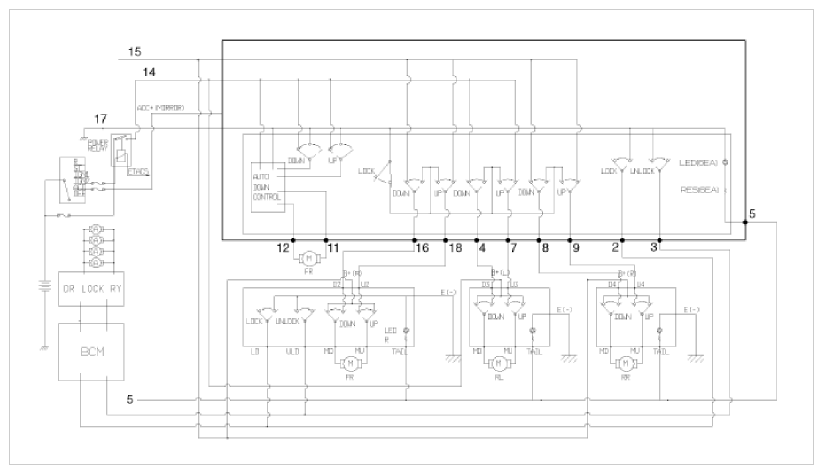

Fig 1: Driver Power Window Switch Circuit Diagram (Driver Auto Down)

G09744403

Courtesy of KIA MOTORS AMERICA, INC.
