Circuit Diagram

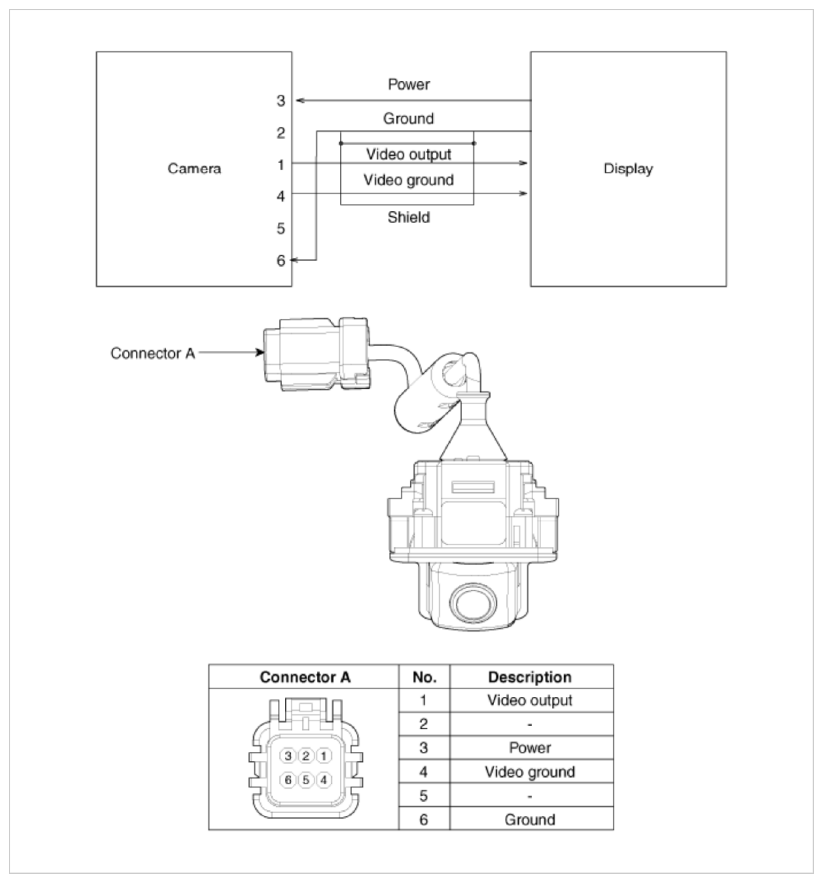

Fig 1: Back View Camera System - Circuit Diagram

G09745072

Courtesy of KIA MOTORS AMERICA, INC.
