Rear Power Window Switch

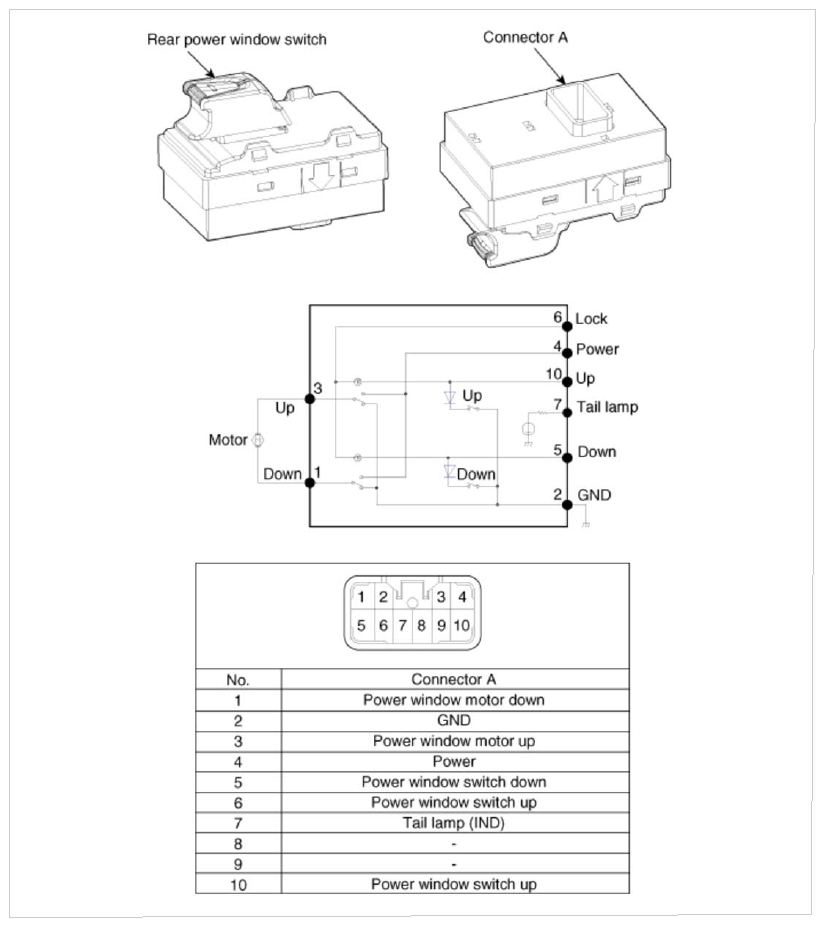

Fig 1: Rear Power Window Switch Schematic Diagrams

G09752841

Courtesy of KIA MOTORS AMERICA, INC.
