Driver Power Window Switch (1)

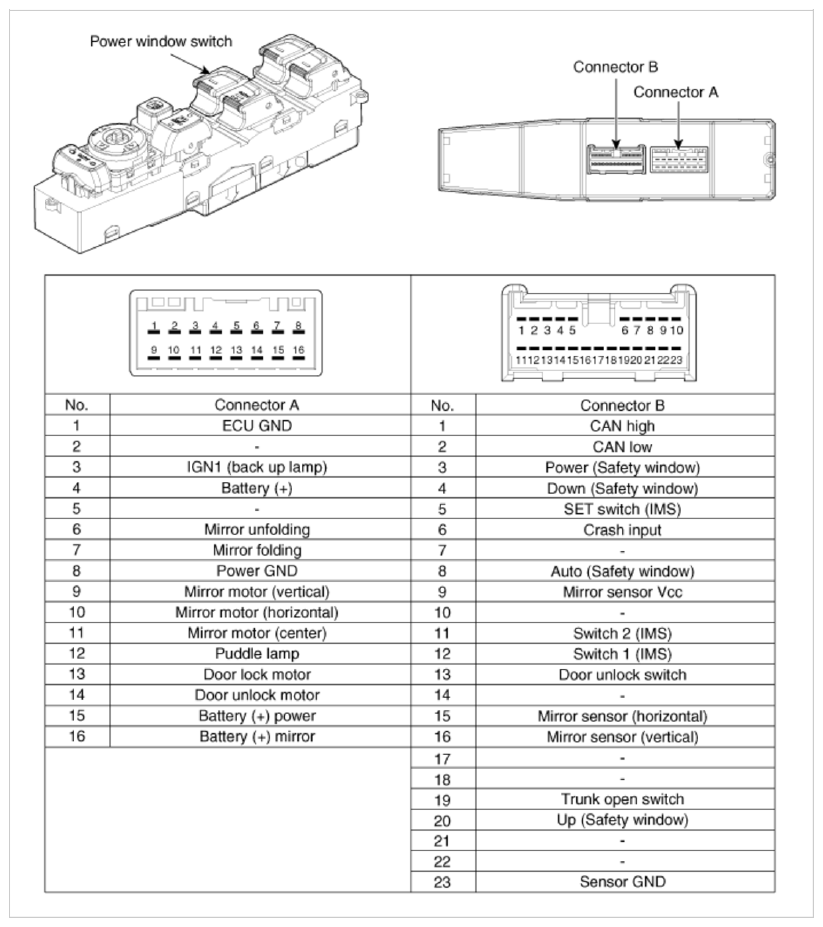

Fig 1: Driver Power Window Switch Schematic Diagrams

G09752838

Courtesy of KIA MOTORS AMERICA, INC.
