Circuit Diagram

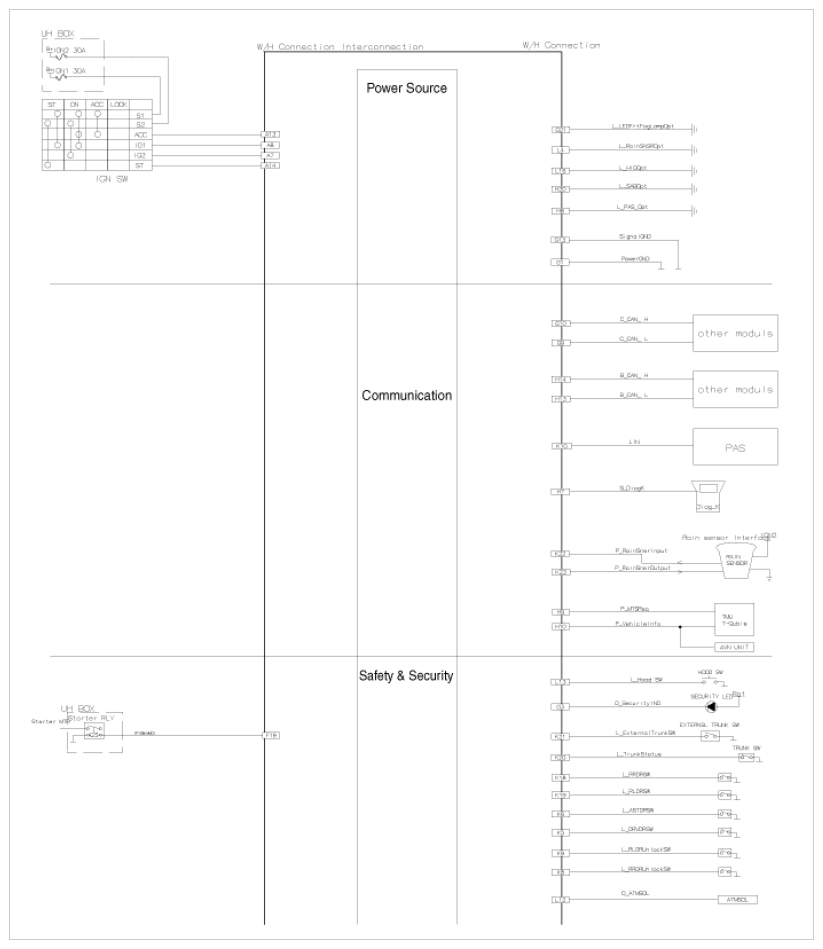

Fig 1: Body Control Module - Circuit Diagram (1 Of 4)
G09752674Courtesy of KIA MOTORS AMERICA, INC.

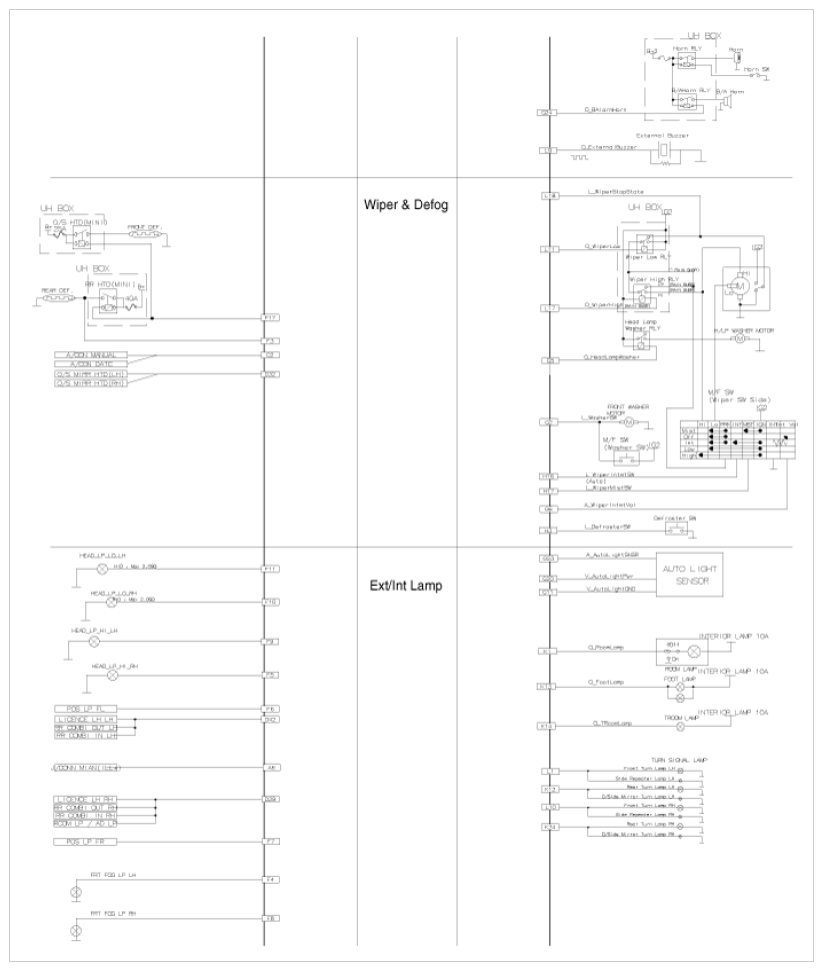

Fig 2: Body Control Module - Circuit Diagram (2 Of 4)
G09752675Courtesy of KIA MOTORS AMERICA, INC.

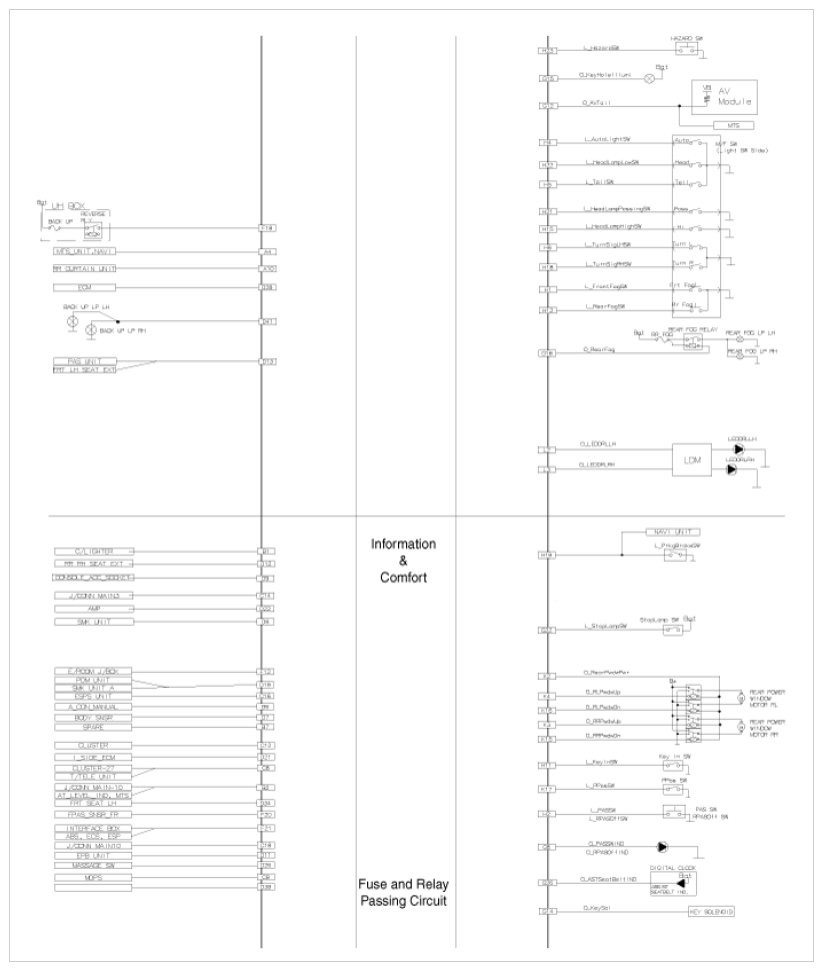

Fig 3: Body Control Module - Circuit Diagram (3 Of 4)
G09752676Courtesy of KIA MOTORS AMERICA, INC.

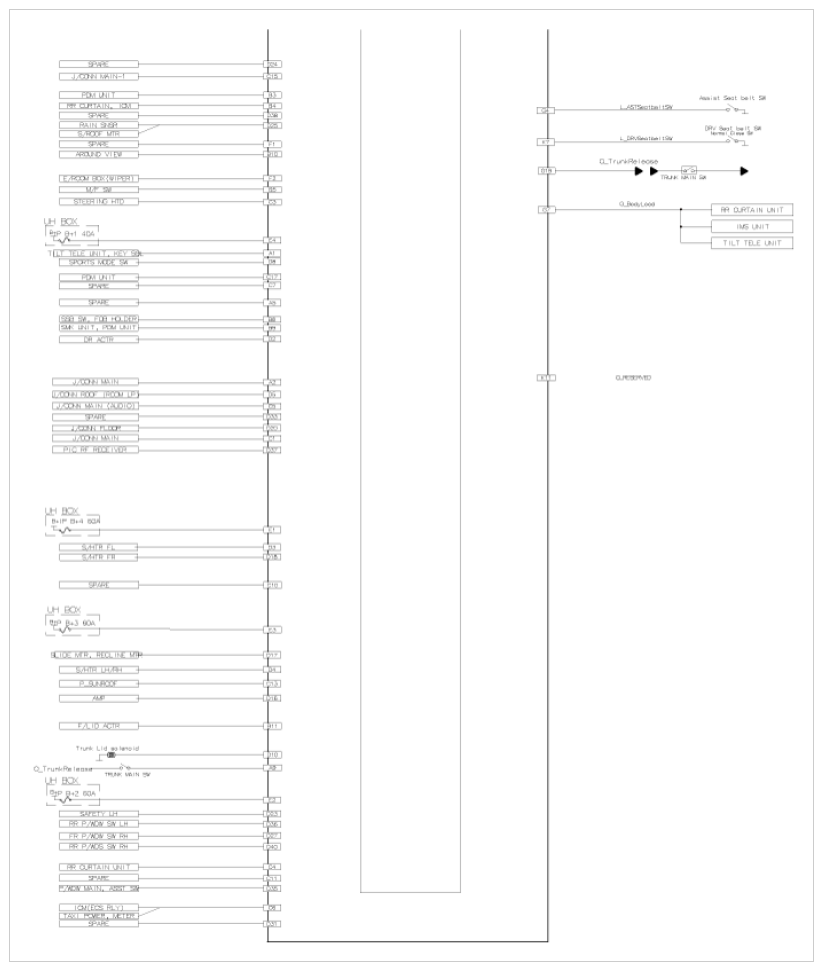

Fig 4: Body Control Module - Circuit Diagram (4 Of 4)
G09752677Courtesy of KIA MOTORS AMERICA, INC.
