Signal Waveform & Data

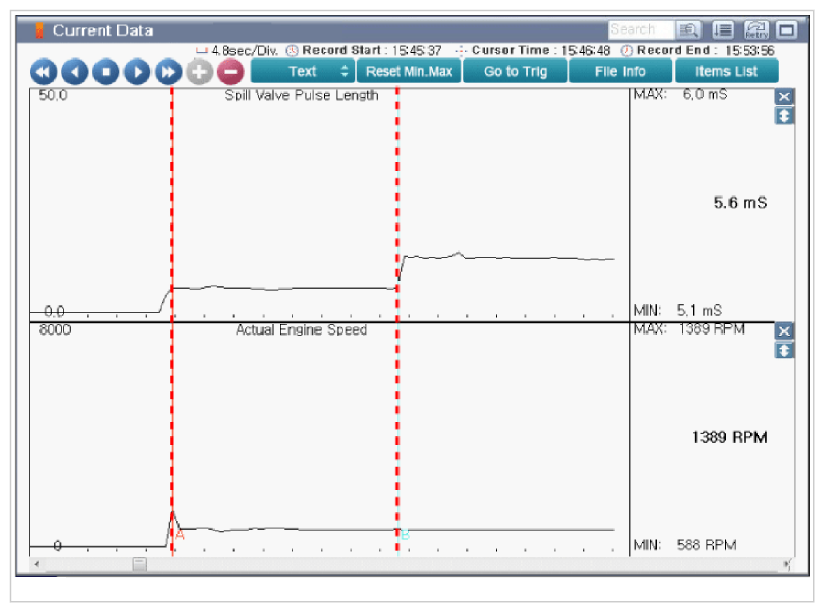

Fig 1: Display - Normal Graph Of Spill Valve Pulse Length At Starting Screen
G09754583Courtesy of KIA MOTORS AMERICA, INC.

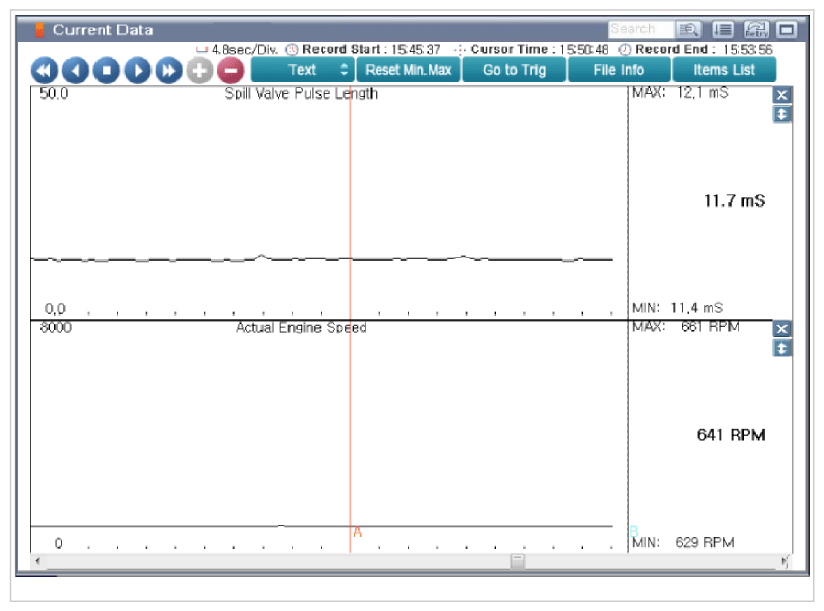

Fig 2: Display - Normal Graph Of Spill Valve Pulse Length At Idle Screen
G09754584Courtesy of KIA MOTORS AMERICA, INC.

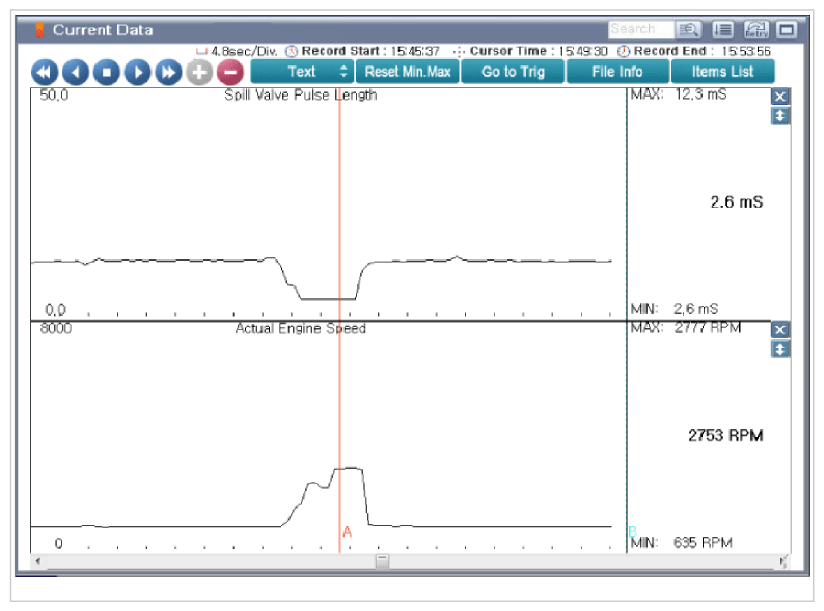

Fig 3: Display - Normal Graph Of Spill Valve Pulse Length At Approx 3000 RPM Screen
G09754585Courtesy of KIA MOTORS AMERICA, INC.

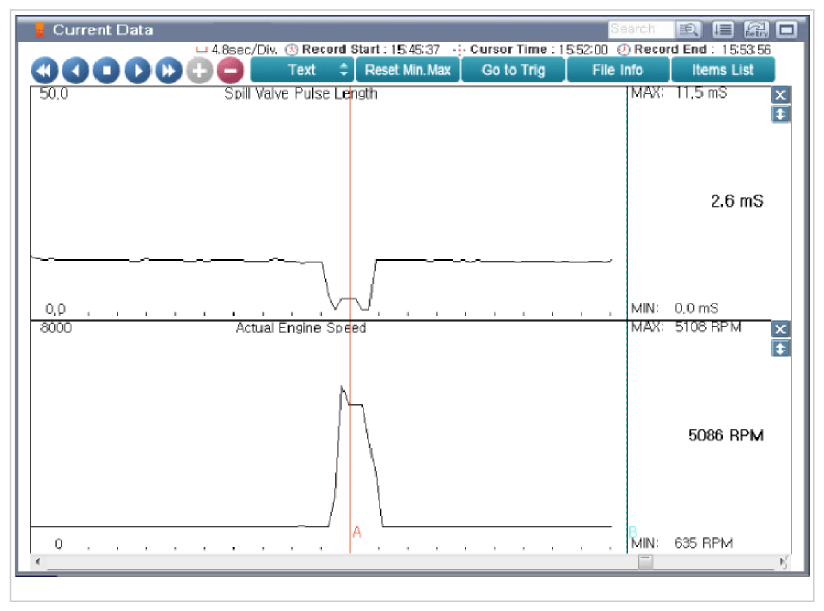

Fig 4: Display - Normal Graph Of Spill Valve Pulse Length At WOT Screen
G09754586Courtesy of KIA MOTORS AMERICA, INC.
