Circuit Diagram

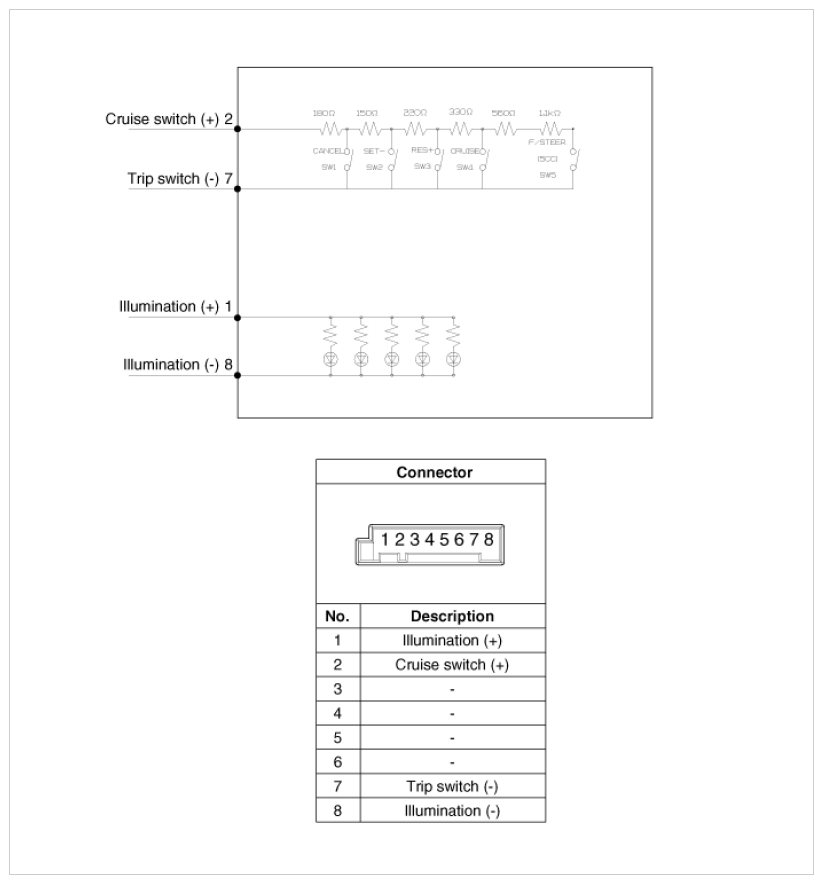

Fig 1: Smart Cruise Control Switch Schematic

G09751157

Courtesy of KIA MOTORS AMERICA, INC.
