Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. With the (-) driver, remove the photo sensor (A) from the center of defrost nozzle.

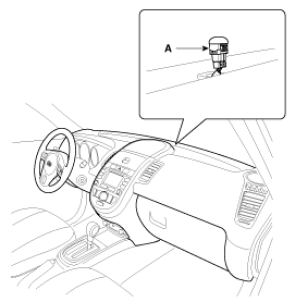

    Fig 1: Identifying Photo Sensor
    G08329605Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
