Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel.

    Refer to "AUDIO "

  3. Remove the heater and A/C controller (A) after disconnecting the connector (B).

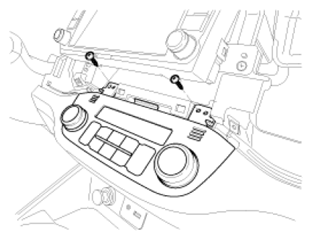

    Fig 1: A/C Controller
    G07424857Courtesy of KIA MOTORS AMERICA, INC.

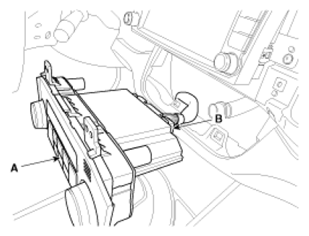

    Fig 2: A/C Controller & Connector
    G07424858Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Take care not to damage the hook when removing the heater and A/C controller.
