Front Pillar Trim Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to protect your hands.
  • Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. After loosening the mounting bolt, then remove the front pillar trim (A).

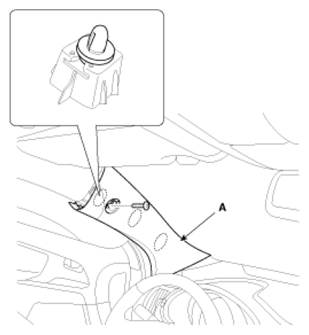

    Fig 1: Identifying Front Pillar Trim & Mounting Bolt
    G07424466Courtesy of KIA MOTORS AMERICA, INC.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.
