Cluster Replacement

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the cluster fascia panel cap (B) and then loosening the mounting screw.
  2. Using a screwdriver or remover, remove the cluster fascia panel (A).

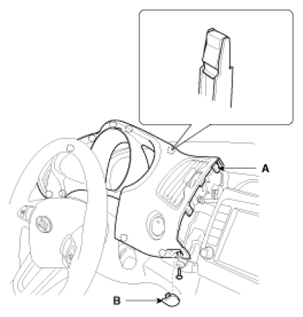

    Fig 1: Identifying Cluster Fascia Panel & Cap
    G07424402Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector (A).
    Fig 2: Identifying Cluster Fascia Panel Connector
    G07424403Courtesy of KIA MOTORS AMERICA, INC.
  4. After loosening the mounting screws, then remove the cluster assembly (A).

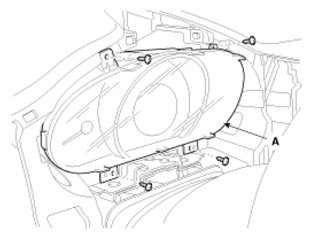

    Fig 3: Identifying Cluster Assembly & Mounting Screws
    G07424404Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the connector (A).
    Fig 4: Identifying Cluster Assembly Connector
    G07424405Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
    • Replace any damage clips.
