Lift And Support Points

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When heavy rear components such as suspension, fuel tank, spare tire, tailgate and trunk lid are to be removed, place additional weight in the luggage area before hoisting. When substantial weight is removed from the rear of the vehicle, the center of gravity may change and can cause the vehicle to tip forward on the hoist.

NOTE:

Since each tire/wheel assembly weights approximately 14 kg (30 lbs), placing the front wheels in the luggage area can assist with the weight distribution.
Use the same support points to support the vehicle on safety stands.

Place the lift blocks under the support points as shown in the illustration.
Raise the hoist a few inches (centimeters) and rock the vehicle to be sure it is firmly supported.
Raise the hoist to full height to inspect the lift points for secure support.

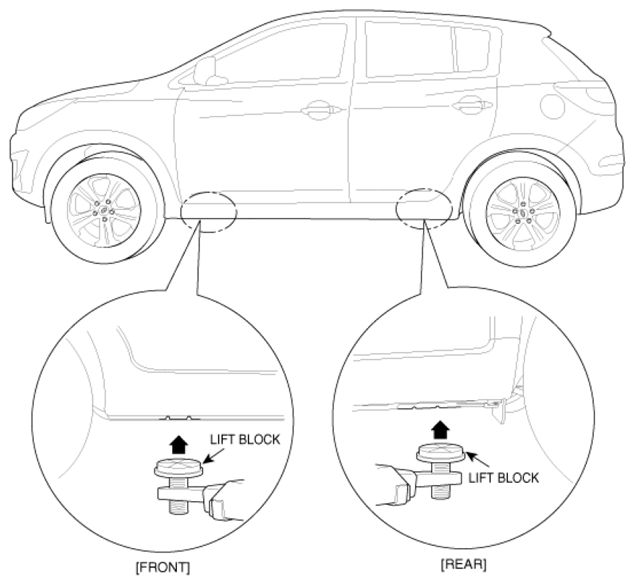

Fig 1: Raising Hoist (Front And Rear)
Courtesy of KIA MOTORS AMERICA, INC.
