WCS Reset

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF", connect scan tool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

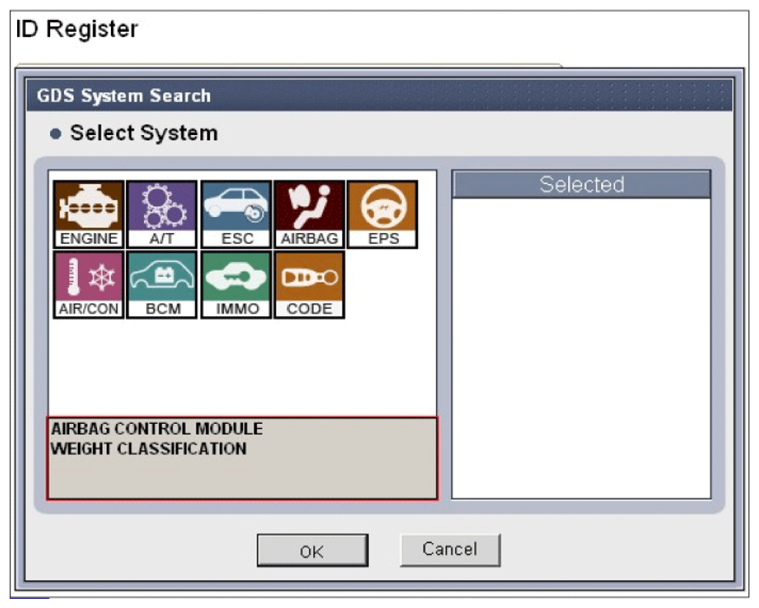

Fig 1: Scan Tool Display - ID Register (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

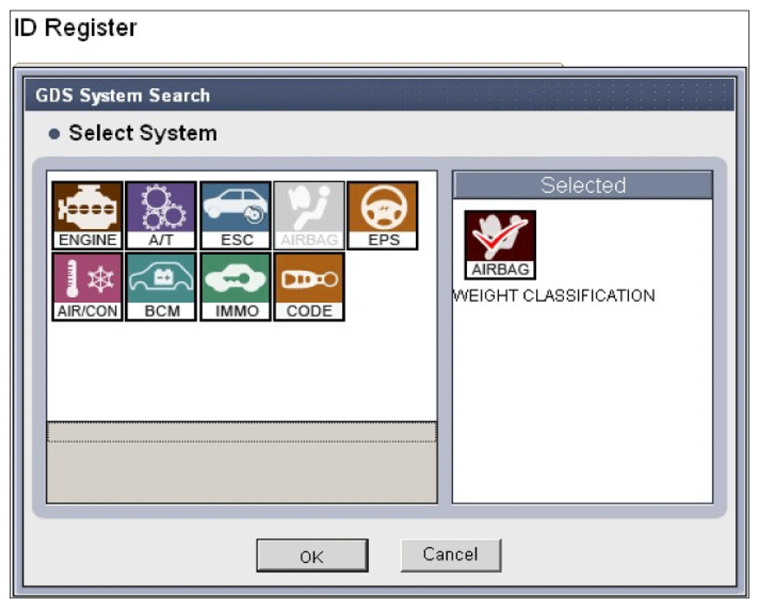

Fig 2: Scan Tool Display - ID Register (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

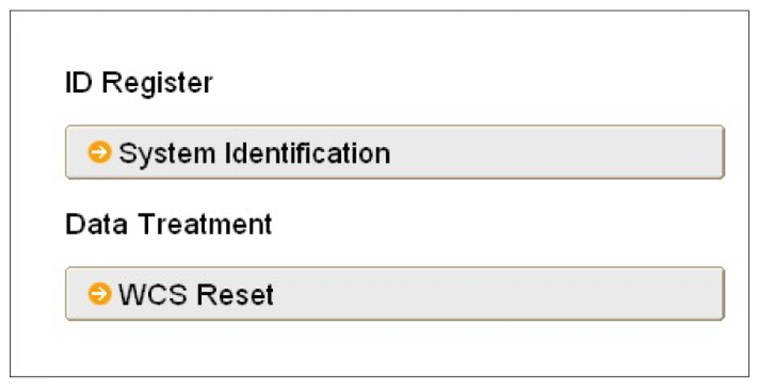

Fig 3: Scan Tool Display - ID Register (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

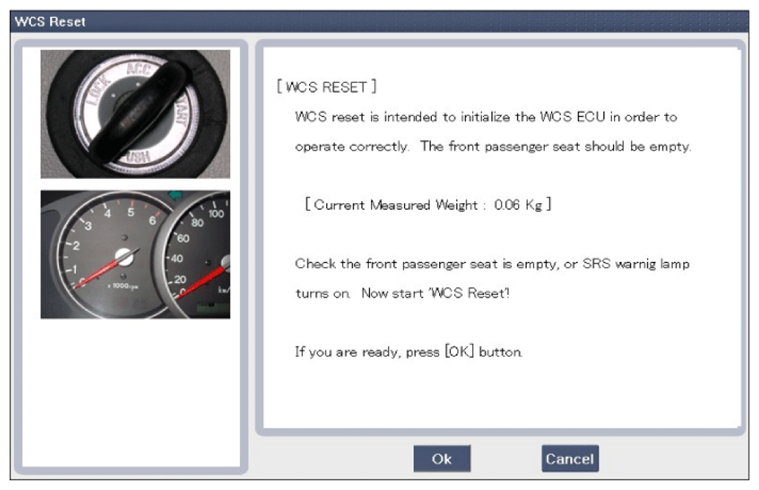

Fig 4: Scan Tool Display - WCS Reset
Courtesy of HYUNDAI MOTOR CO.

Specification: Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3 ~ 10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

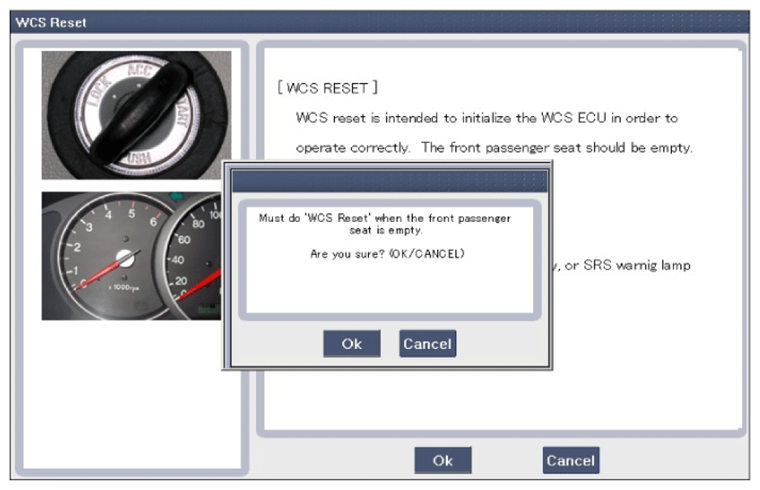

Fig 5: Scan Tool Display - WCS Reset (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

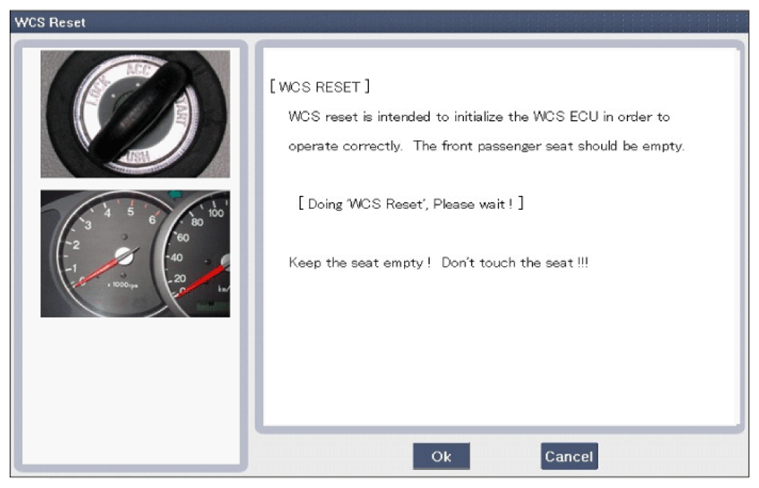

Fig 6: Scan Tool Display - WCS Reset (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.

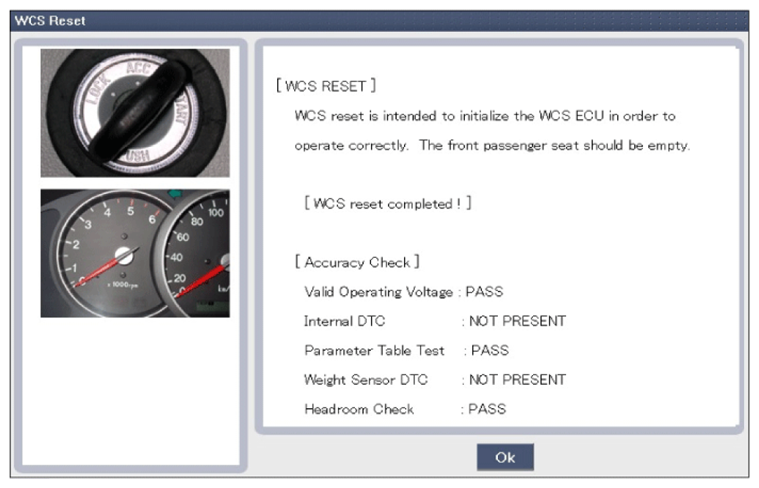

Fig 7: Scan Tool Display - WCS Reset (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

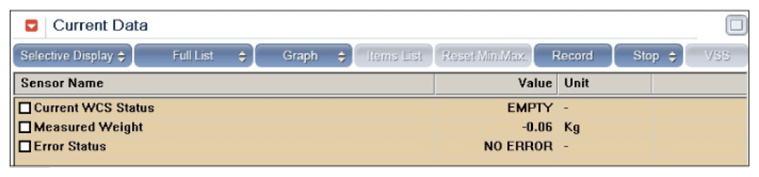

Fig 8: Scan Tool Display - Current Data
Courtesy of HYUNDAI MOTOR CO.
Is the displayed parameter the same as the above?
YES
- WCS reset is performed correctly
- Go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
