Harness Connector

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

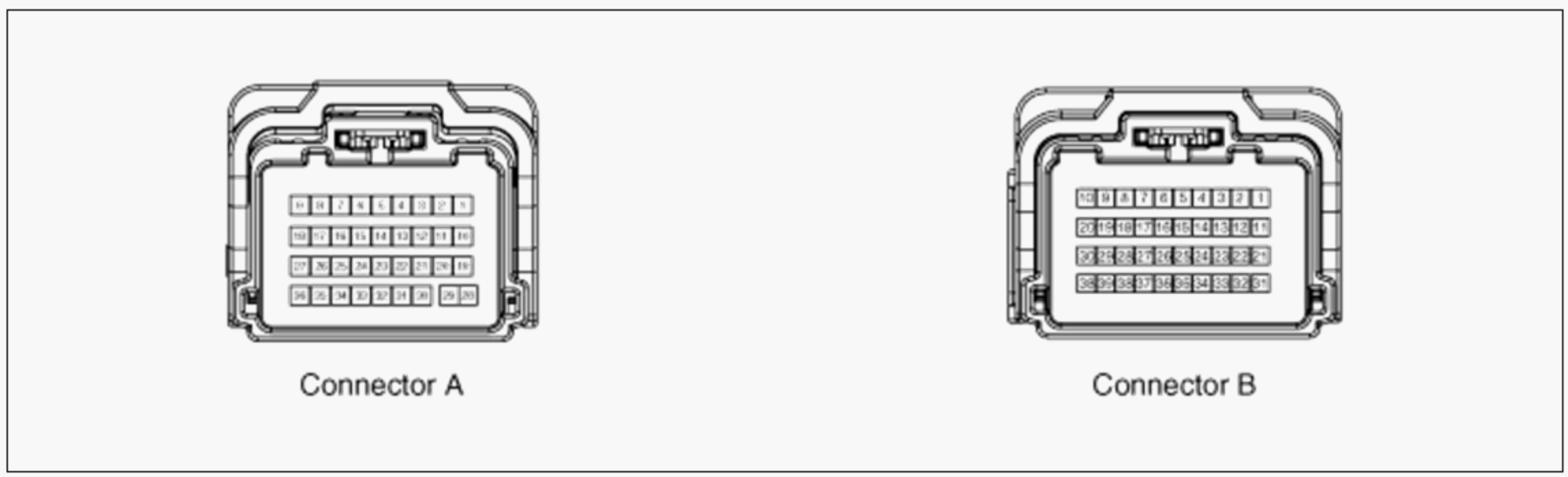

Fig 1: Identifying SRSCM Connector Terminal

Courtesy of HYUNDAI MOTOR CO.

TERMINALS REFERENCE

Pin	Function (Connector A)	Pin	Function (Connector B)
1	-	1	-
2	-	2	-
3	-	3	-
4	-	4	-
5	-	5	-
6	-	6	-
7	(-	7	-
8	-	8	-
9	-	9	-
10	Ignition	10	-
11	-	11	Seat Belt Pretensioner [Driver] Low
12	-	12	Seat Belt Pretensioner [Driver] High
13	(1st stage) Passenger Airbag High	13	Seat belt Pretensioner [Passenger] High
14	(1st stage) Passenger Airbag Low	14	Seat belt Pretensioner [Passenger] Low
15	(2nd stage) Driver Airbag Low	15	-
16	(2nd stage) Driver Airbag High	16	-
17	(2nd stage) Passenger Airbag High	17	-
18	(2nd stage) Passenger Airbag Low	18	-
19	(1st stage) Driver Airbag Low	19	-
20	(1st stage) Driver Airbag High	20	CAN_Low
21	-	21	ain Airbag [Driver] Low
22	Front Impact Sensor [Driver] Low	22	Curtain Airbag [Driver] High
23	Front Impact Sensor [Driver] High	23	Curtain Airbag [Passenger] High
24	Front Impact Sensor [Passenger] Low	24	Curtain Airbag [Passenger] Low
25	Front Impact Sensor [Passenger] High	25	Side Airbag [Driver] Low
26	-	26	Side Airbag [Driver] High
27	-	27	Side Airbag [Passenger] High
28	Short Bar	28	Side Airbag [Passenger] Low
29	Short Bar	29	Seat Track Position Sensor [Driver]
30	Airbag Warning Lamp	30	CAN_High
31	Ground	31	Side Impact Sensor [Rear - Driver] Low
32	WCS	32	Side Impact Sensor [Rear - Driver] High
33	-	33	Side Impact Sensor [Rear - Passenger] Low
34	Crash Output	34	Pressure Side Impact Sensor [Rear - Passenger] High
35	-	35	Pressure Side Impact Sensor [Front - Driver] Low
36	Telltale Lamp	36	Pressure Side Impact Sensor [Front - Driver] High
37	-	37	Pressure Side Impact Sensor [Front - Passenger] Low
38	-	38	Pressure Side Impact Sensor [Front - Passenger] High
39	-	39	Seat Belt Buckle Switch [Driver]
40	-	40	Side Impact Sensor [Rear - Driver] High
