Procedure Of ATF Level Adjusting
WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a flat road and lock the tires.
- Shift the shift lever to the "P" range.

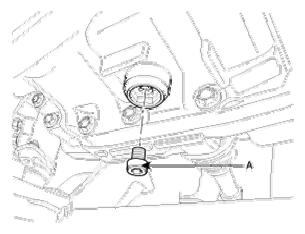

- Remove the overflow plug (A) and the O-ring by using a torx wrench (T40).

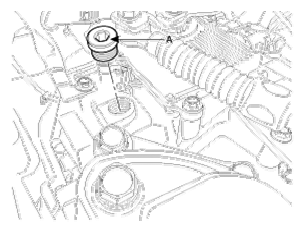

- Remove the filler plug (A) and the O-ring by using a torx wrench (T55).NOTE: In case, remove the air cleaner assembly.
- Check if ATF drops from the overflow hole. If ATF does not drop, add ATF until it drops.
- Fix the overflow plug with the used O-ring by using Torx wrench (T40).
- Add 600 cc of ATF from the oil filling hole.
- Coat the new O-ring with ATF, and install it to the filler plug.
O-ring size:
inner dia. - 15.41 mm, thickness - 2.21 mm
- Tighten the filler plug by using Torx (T55) wrench with the specified torque.
Tightening torque:
24-56 N.m (2.4-5.6 kgf.m, 17.4-40.5 lb-ft)
- Start the engine.
- Raise ATF temperature on CAN signal up to 50~60°C at stabilized idle speed condition.
- Shift from "P" to "D", then from "D" to "P", keeping each shift position "N","R" more than 2 seconds with foot braking.
- Repeat 2 times above procedure "3".
- Remove the overflow plug and the O-ring by using Torx wrench (T40).
- Check If the thin oil stream becomes drop by drop when ATF temperature on CAN signal is at 50~60°C.
- Coat the new O-ring with ATF, and install it to the overflow plug.
O-ring size: inner dia.- 15.41 mm, thickness - 2.21 mm
- Tighten the overflow plug by using Torx (T40) wrench with the specified torque.
Tightening torque:
6-9 N.m (0.6-0.9 kgf.m, 4.3-6.5 lb-ft)
NOTE: Be sure to wipe off spilled ATF completely after tightening the overflow plug.
