Mode $06 Data Definitions For 2001-2004 RIO, 2004 SPECTRO, 2001-2003 Optima

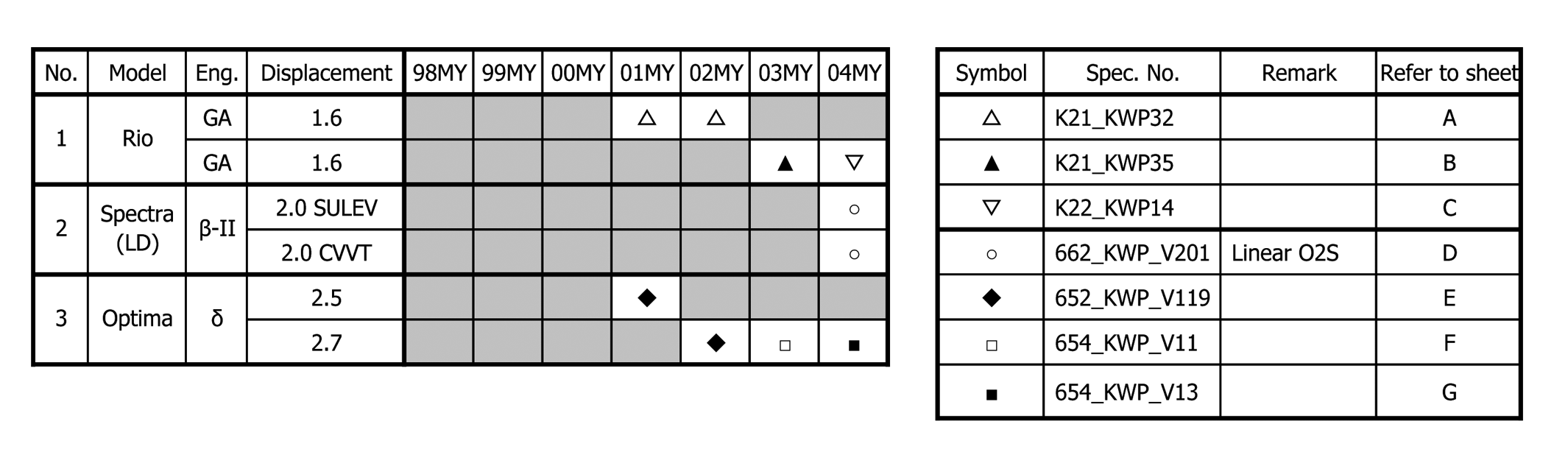

Fig 1: Model Index

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Mode $06 Data Definitions Sheet A

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Mode $06 Data Definitions Sheet B

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Mode $06 Data Definitions Sheet C

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Mode $06 Data Definitions Sheet D

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Mode $06 Data Definitions Sheet E

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Mode $06 Data Definitions Sheet F

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Mode $06 Data Definitions Sheet G

Courtesy of KIA MOTORS AMERICA, INC.
