Drive Cycle Chart For 2006MY + Vehicle

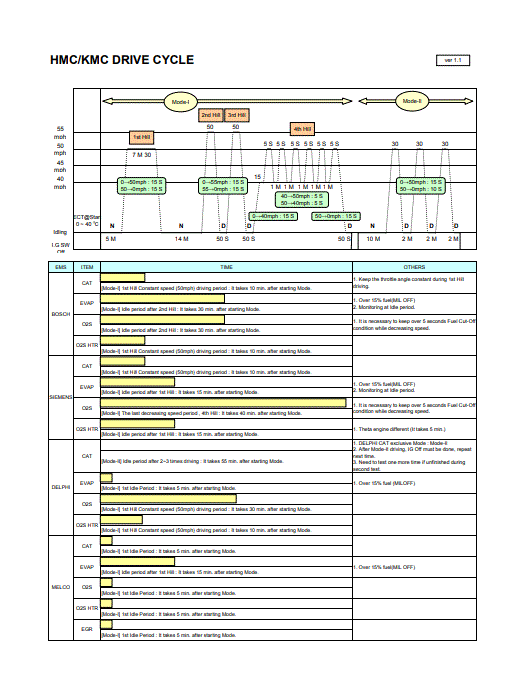

Fig 1: (1 Of 2)

G00634928

Courtesy of KIA MOTORS AMERICA, INC.

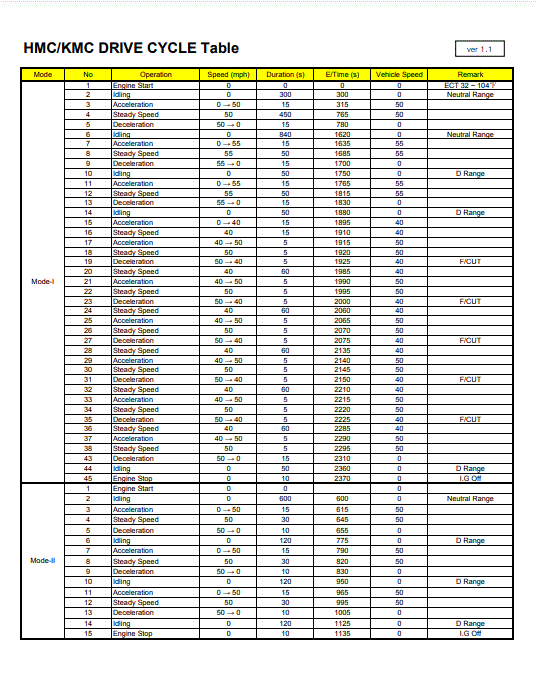

Fig 2: (2 Of 2)

G00634929

Courtesy of KIA MOTORS AMERICA, INC.
