Idle Stop & Go (ISG) System - 1.6L
>>
Troubleshooting
>>
Battery status inspection
Battery status inspection

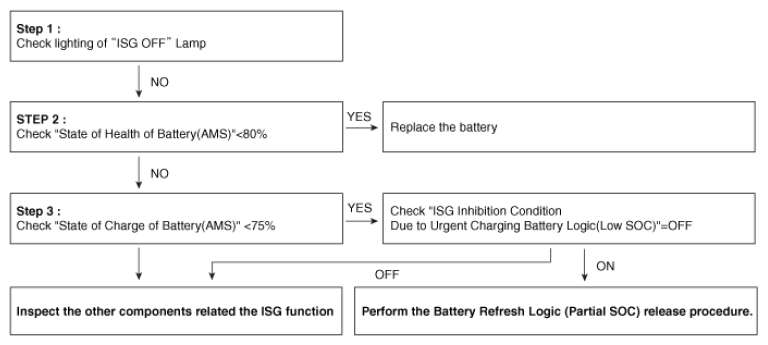

Fig 1: ISG Battery Status Inspection Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
