Battery Diagnostic Flow

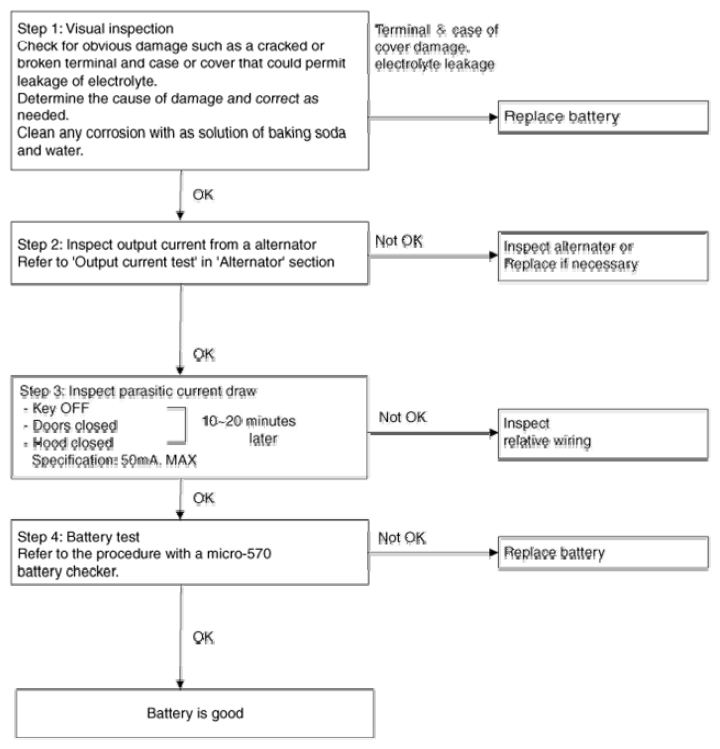

Fig 1: Battery Diagnostic Flow Diagram
G08328056Courtesy of KIA MOTORS AMERICA, INC.
