(2.0 MPI)

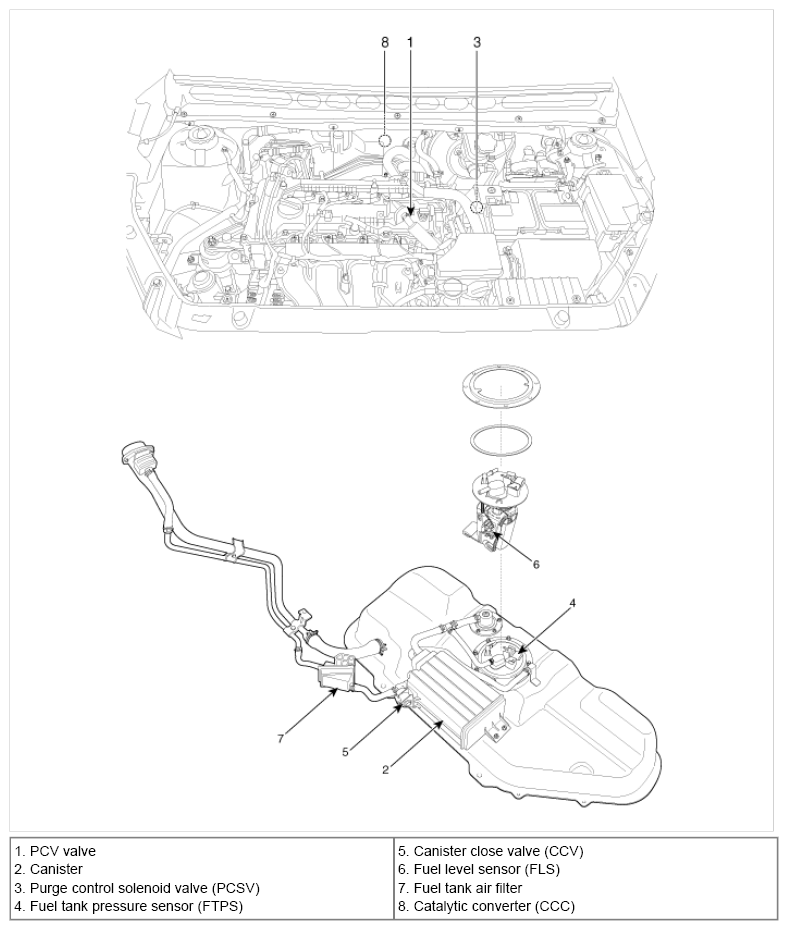

Fig 1: Identifying Emission Control System Components - 2.0 MPI (1 Of 2)
G08327880Courtesy of KIA MOTORS AMERICA, INC.

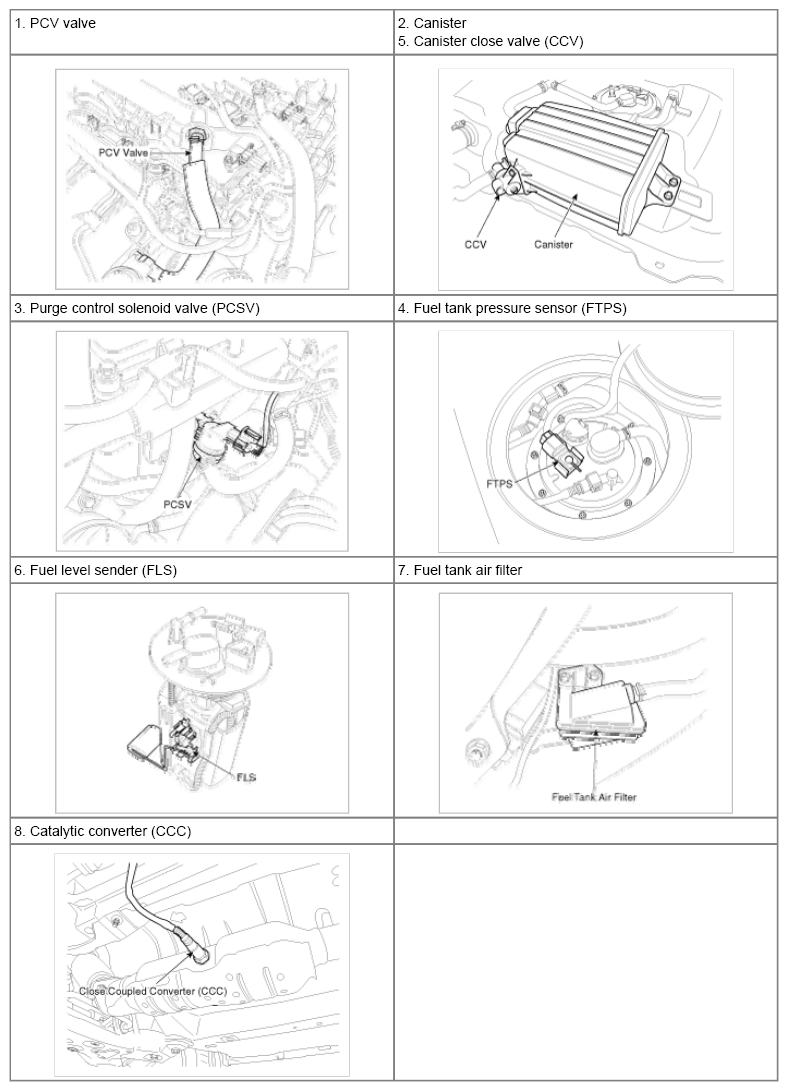

Fig 2: Identifying Emission Control System Components - 2.0 MPI (2 Of 2)
G08327881Courtesy of KIA MOTORS AMERICA, INC.
