(1.6 GDI)

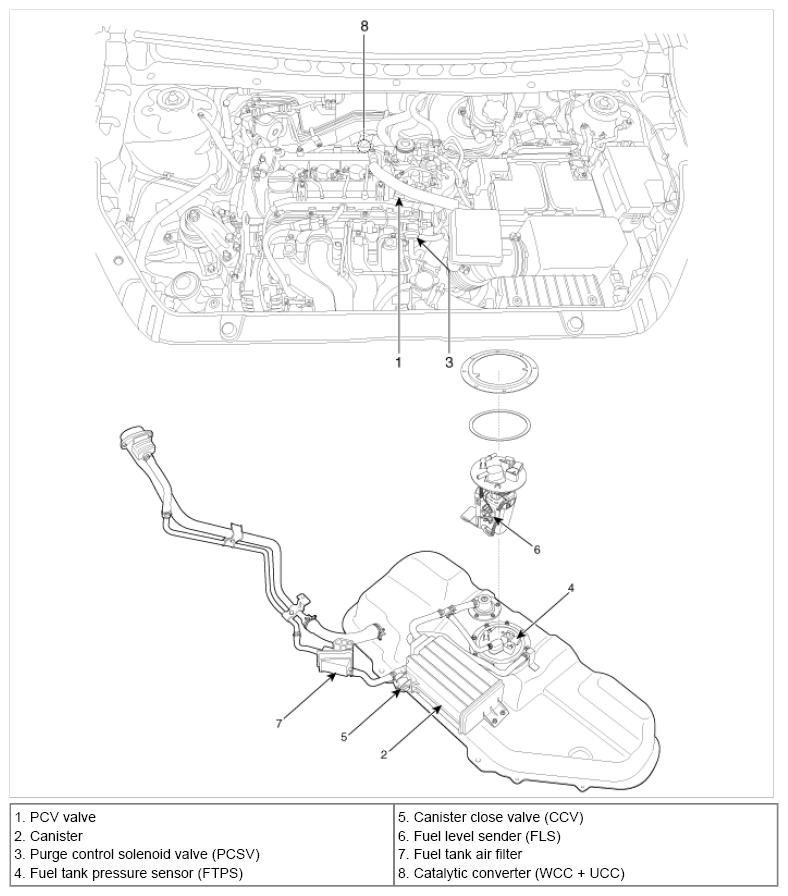

Fig 1: Identifying Emission Control System Components - 1.6 GDI (1 Of 2)
G08327878Courtesy of KIA MOTORS AMERICA, INC.

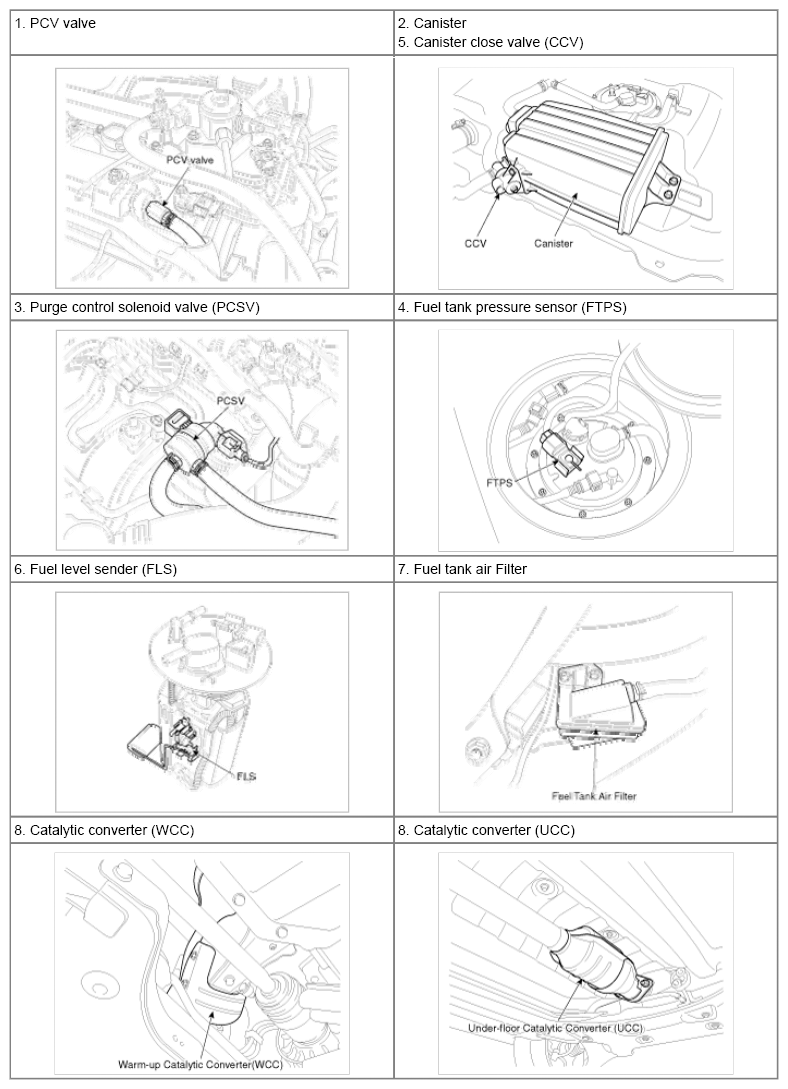

Fig 2: Identifying Emission Control System Components - 1.6 GDI (2 Of 2)
G08327879Courtesy of KIA MOTORS AMERICA, INC.
