2013
>>
Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Back View Camera
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

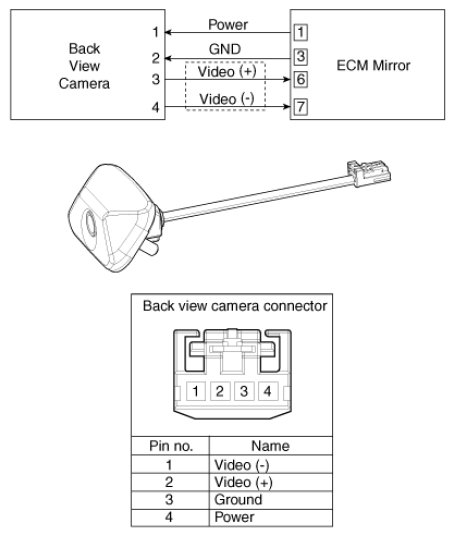

Fig 1: Back View Camera And ECM Mirror - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
