Trouble Diagnostics When Using Diagnosis Tool

The body control system can be diagnosed by using the GDS.
The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the BCM function, select the menu of model and body control module.

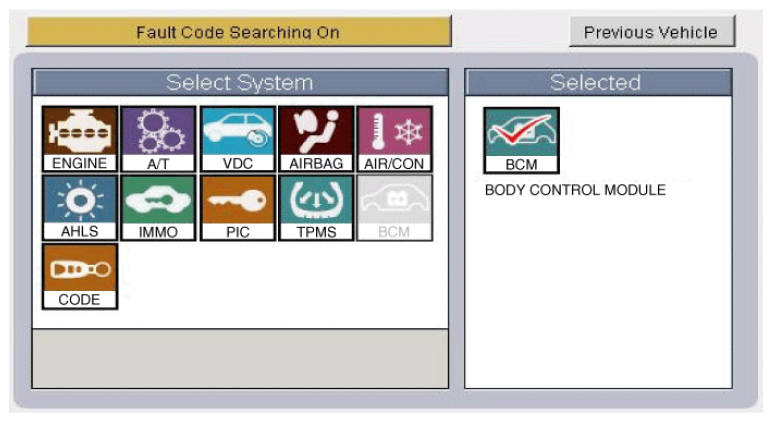

Fig 1: Display - Body Control Module Selected
Courtesy of KIA MOTORS AMERICA, INC.
To consult the present input/out value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and transmitters etc.

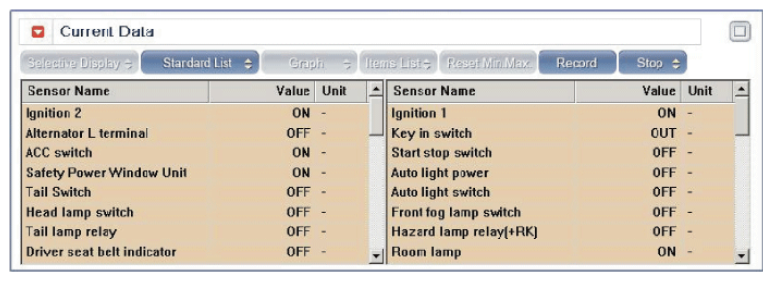

Fig 2: Display - Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
To perform functional test on BCM outputs, select "ACTUATION TEST"

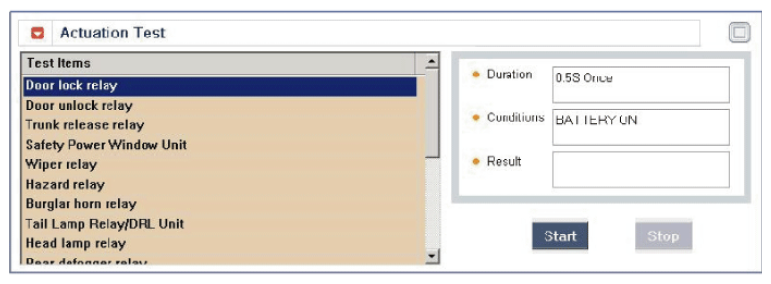

Fig 3: Display - Door Lock Realy Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Display - Door Lock Realy Actuation Test Screen (With Result)
Courtesy of KIA MOTORS AMERICA, INC.
