Engine & Transaxle Assembly - 2.0L
>>
Engine Mounting
>>
Components and Components Location
>>
Components (~2012-02-09)
Components (~2012-02-09)

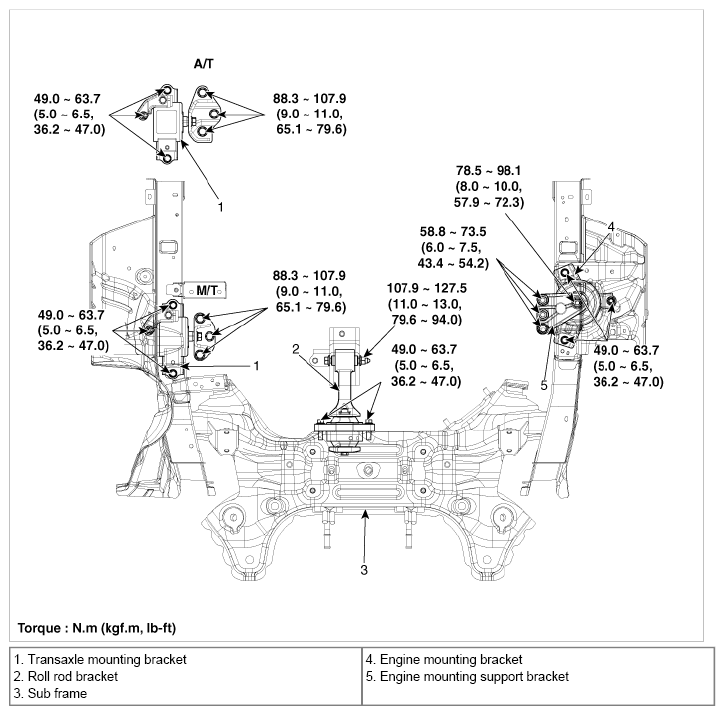

Fig 1: Engine Mounting Replacement Components With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
