Engine & Transaxle Assembly - 2.0L
>>
Engine Mounting
>>
Components and Components Location
>>
Components (2012-02-10~)
Components (2012-02-10~)

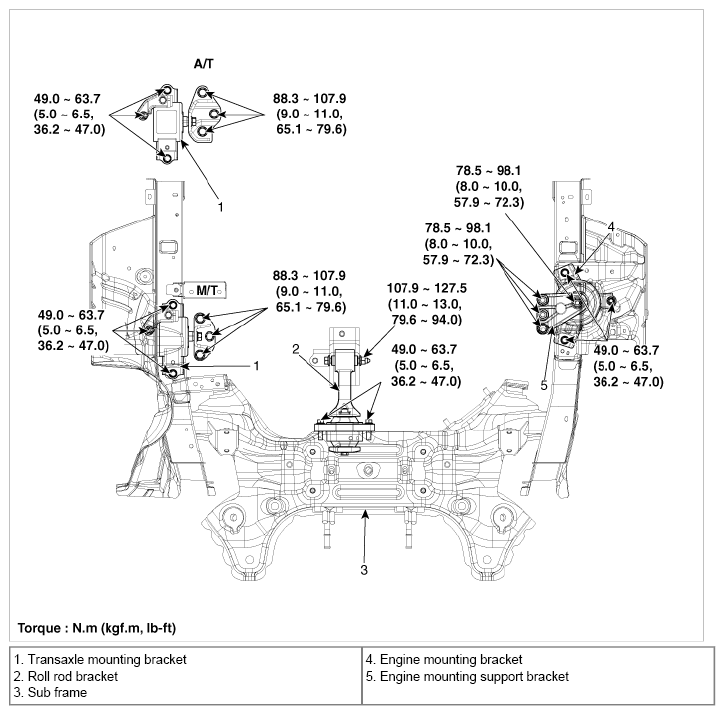

Fig 1: Engine Mounting Replacement Components With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
