Power Circuit Inspection

Check power circuit voltage
1. IG key OFF.
2. Disconnect 'CRUISE REMOCON SWITCH' connector.
3. IG key ON.
4. Measure voltage between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and chassis ground.
  Specification: 11.5V~13.0V

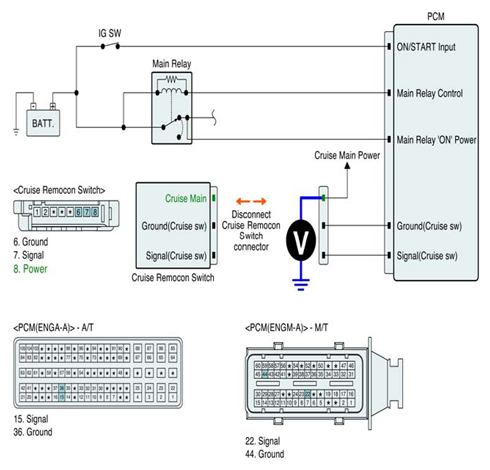

  Fig 1: Measuring Voltage Between Cruise Remocon Switch Connector Cruise Main Terminal And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured value within specification?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION ".
  NO
  - Repair short to ground / open between 'CRUISE MAIN' terminal of 'CRUISE REMOCON SWITCH' harness connector and 'Cruise supply' terminal of PCM harness connector, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
