Monitor GDS Data
WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- IG KEY "ON" & Engine "OFF".
- Erase DTC after connecting GDS.

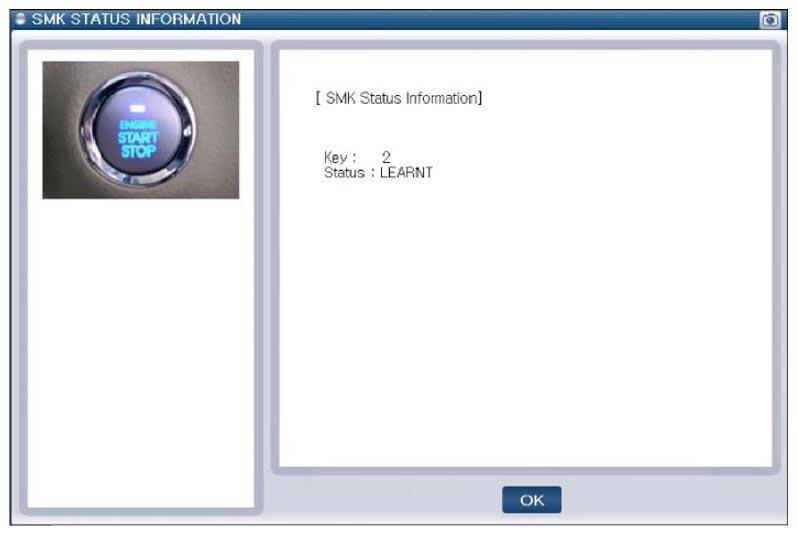

- Check Smart key status in "Vehicle S/W Management" , if DTC is retrieved.
- Is the Smart key ECM learnt status?
YES
- Fault is intermittent caused by poor contact in Smart key ECM and/or ECM's connector or was repaired and Smart key ECM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
- Fault is intermittent caused by poor contact in Smart key ECM and/or ECM's connector or was repaired and Smart key ECM memory was not cleared.
