Diagnostic Circuit

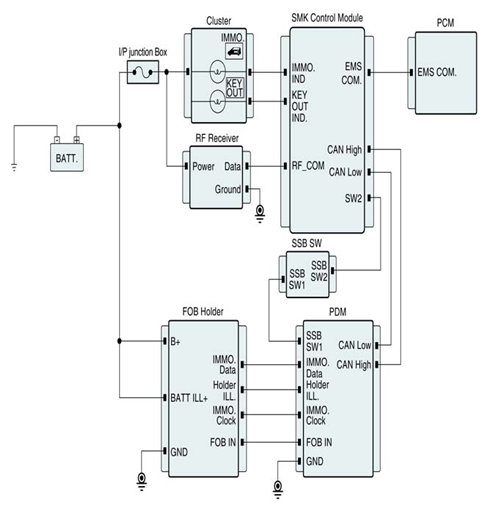

Fig 1: Smart Key Unit Circuit Diagram
G07417309Courtesy of KIA MOTORS AMERICA, INC.

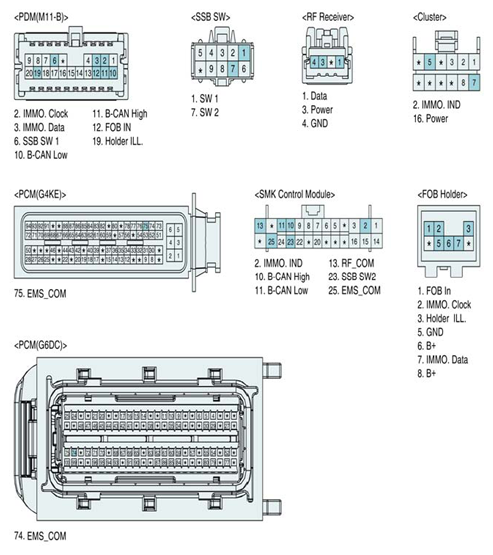

Fig 2: Identifying PDM, SSB, FOB Holder, SMK Control Module And Instrument Cluster Connector Terminals
G07417310Courtesy of KIA MOTORS AMERICA, INC.
