Diagnostic Circuit Diagram

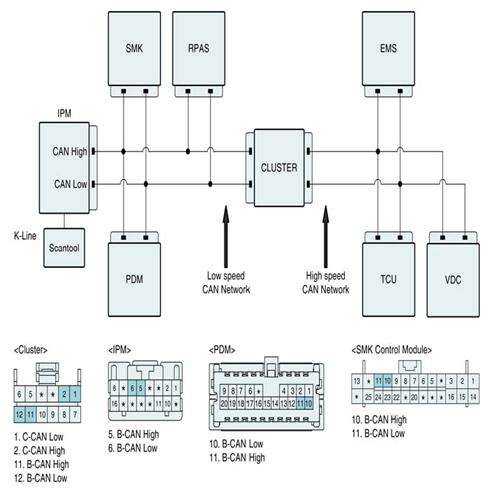

Fig 1: PDM And Smart Key Circuit Diagram
G07417272Courtesy of KIA MOTORS AMERICA, INC.

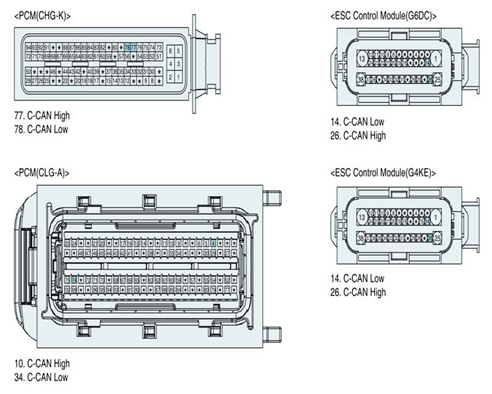

Fig 2: Identifying PCM, ESC Control Module And Instrument Cluster Connector Terminals
G07417273Courtesy of KIA MOTORS AMERICA, INC.
