Connector [CHG-A]
TCM TERMINAL INPUT/OUTPUT SIGNAL REFERENCE CHART

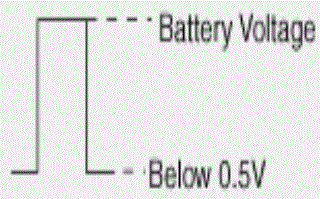

| Pin No. | Description | Condition | Type | Level | Test result | |
|---|---|---|---|---|---|---|
| 1 | - | |||||
| 2 | - | |||||
| 3 | Pressure control solenoid A(VFS-LINE) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| 4 | Torque Converter Clutch solenoid (VFS-T/Con) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| 5 | Shift solenoid(35R_VFS) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| 6 | Input speed sensor power | ON | Power | 0V/7.5V | 7.5V | |
| OFF | 0.3 V | |||||
| 7 | Output speed sensor power | ON | Power | 0V/7.5V | 7.5V | |
| OFF | 0.3 V | |||||
| 8 | Input speed sensor signal | High | Input | 0.7V/1.4V | ||
| Low | ||||||
| 9 | Output speed sensor signal | High | Input | 0.7V/1.4V | ||
| Low | ||||||
| 10 | ||||||
| 11 | ||||||
| 12 | ||||||
| 13 | ||||||
| 14 | ||||||
| 15 | ||||||
| 16 | ||||||
| 17 | Shift solenoid A(VFS-UD) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| Power supply : V_SOL2 | ||||||
| 18 | Shift solenoid A(VFS-26) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| Power supply : V_SOL2 | ||||||
| 19 | Shift lock solenoid | High | Output | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 20 | Shift solenoid A(VFS-OD) | Output | 0V/Battery voltage level | |||
| 9V < Battery voltage level < 16V | ||||||
| Power supply : V_SOL1 | ||||||
| 21 | - | |||||
| 22 | Rear lamp relay | R ON | Output | 0V/Battery voltage level | 0.3V | |
| Other | 9V < Battery voltage level < 16V | Battery voltage level | ||||
| 23 | - | |||||
| 24 | Start relay | High | Output | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 25 | Inhibitor switch signal (S2) | High | Input | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 26 | Inhibitor switch signal (S3) | High | Input | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 27 | Inhibitor switch signal (S4) | High | Input | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 28 | - | |||||
| 29 | - | |||||
| 30 | - | |||||
| 31 | - | |||||
| 32 | Shift solenoid F(SS-B) | High | Output | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 33 | Shift solenoid F(SS-A) | High | Output | 0V/Battery voltage level | Battery voltage level | |
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 34 | Ground (Power 1) | Ground | 0V | 0V | ||
| 35 | Ground (Power 2) | Ground | 0V | 0V | ||
| 36 | Sports mode down switch | Down On | Input | 0V/Battery voltage level | 0.3V | |
| Other | 9V < Battery voltage level < 16V | Battery voltage level | ||||
| 37 | Sports mode up switch | Up On | Input | 0V/Battery voltage level | 0.3V | |
| Other | 9V < Battery voltage level < 16V | Battery voltage level | ||||
| 38 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level | 0.3V | |
| Other | 9V < Battery voltage level < 16V | Battery voltage level | ||||
| 39 | - | |||||
| 40 | High | Input | 0V/Battery voltage level | Battery voltage level | ||
| Low | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 41 | - | |||||
| 42 | - | |||||
| 43 | - | |||||
| 44 | - | |||||
| 45 | - | |||||
| 46 | - | |||||
| 47 | Solenoid supply power 1 | ON | Power | 0V/Battery voltage level | Battery voltage level | |
| OFF | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 48 | Solenoid supply power 2 | ON | Power | 0V/Battery voltage level | Battery voltage level | |
| OFF | 9V < Battery voltage level < 16V | 0.3 V | ||||
| 49 | TCU Input power 1 (For solenoid) | Power | Battery voltage level | Battery voltage level | ||
| 9V < Battery voltage level < 16V | ||||||
| 50 | TCU Input power 2 (For solenoid) | Power | Battery voltage level | Battery voltage level | ||
| 9V < Battery voltage level < 16V | ||||||
| 51 | - | |||||
| 52 | - | |||||
| 53 | Oil temperature sensor (-) | Ground | 0V | 0V | ||
| 54 | Oil temperature sensor (+) | ON | Input | 0V/3.3V | Sensor level (0V~3.3V) | |
| OFF | 0.3V | |||||
| 55 | - | |||||
| 56 | - | |||||
| 57 | - | |||||
| 58 | - | |||||
| 59 | - | |||||
| 60 | - | |||||
