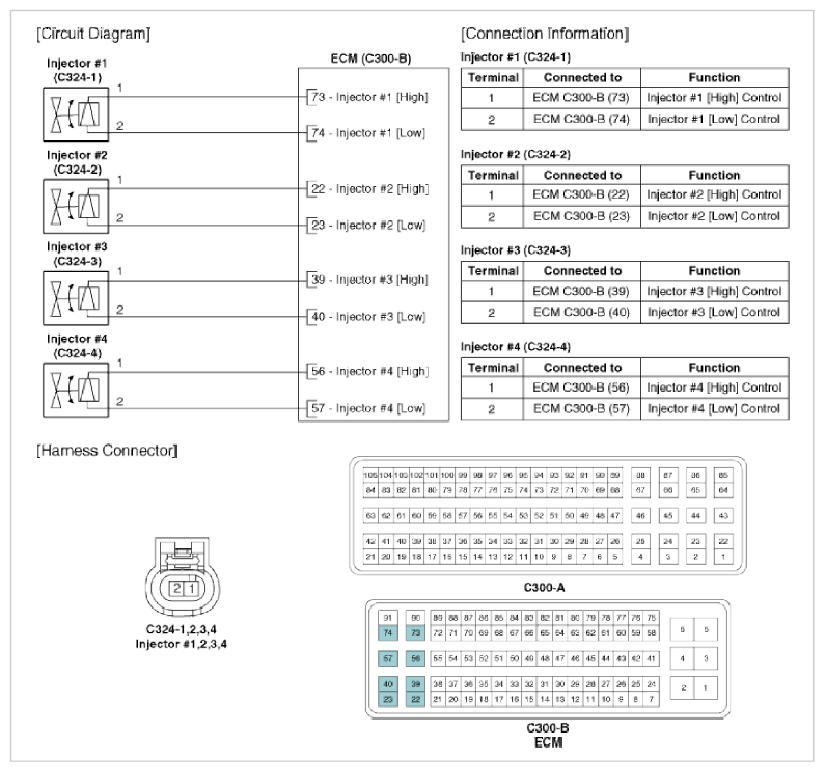

Home >> Kia >> 2012 >> Sorento Base, 2.4L Eng VIN 1, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L GDI >> Injector (VIN 6) >> Schematic Diagrams >> Circuit Diagram
