Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to "REAR SEAT ")

  3. Remove the fuel pump service cover (A) in the trunk.

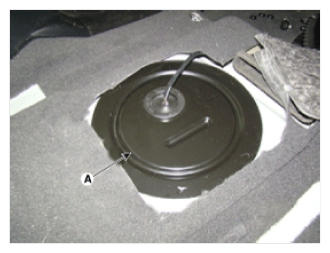

    Fig 1: Fuel Pump Service Cover (VIN 6)
    G09764349Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel tank pressure sensor connector (A), and then remove the fuel tank pressure sensor.

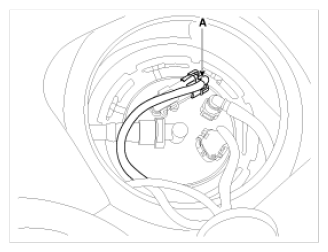

    Fig 2: Fuel Tank Pressure Sensor Component Location (VIN 6)
    G09764350Courtesy of KIA MOTORS AMERICA, INC.
