Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L GDI
>>
Fuel Pressure Control Valve (VIN 6)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

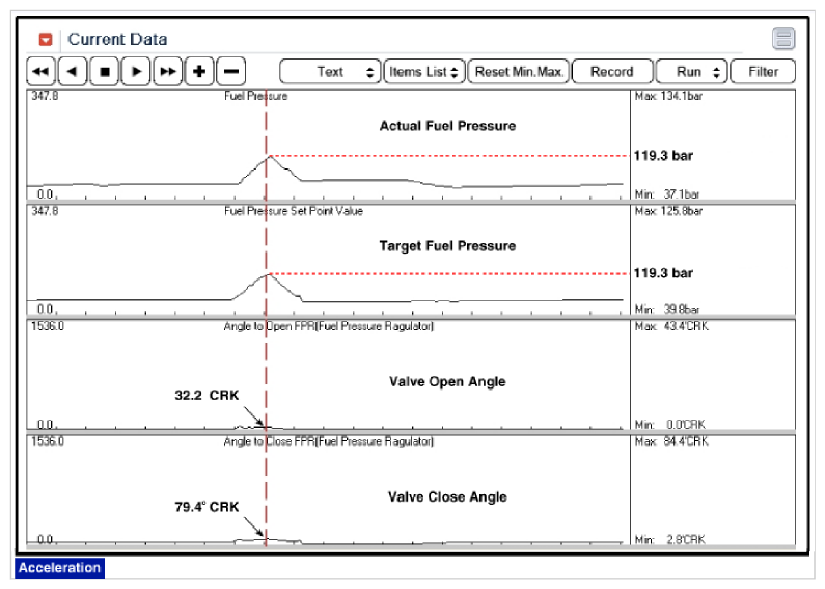

Fig 1: Display - Fuel Pressure Control Valve Signal Waveform Screen (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
